BS 5467 Standards Cables Price from China

BS 5467 Standards Armoured Power Cables Application

BS 5467 standards armoured power cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside

buildings or for direct burial in the ground.

BS 5467 Standards Power Cable Types

BS 5467 Standards Armoured Power Cables, 600/1000V

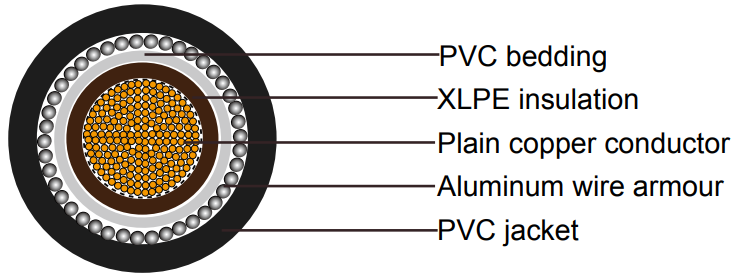

Single-core 600/1000 V cables with circular stranded copper conductor

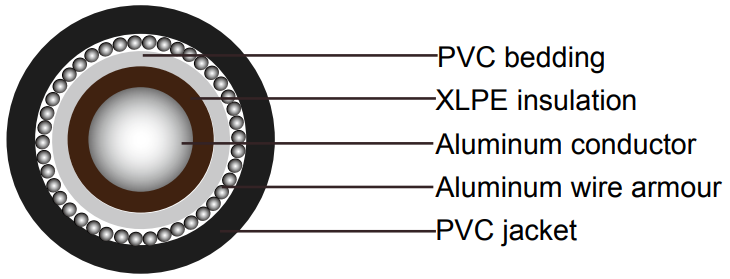

Single-core 600/1000 V cables with solid aluminum conductor

Two-core 600/1000 V cables with stranded copper conductors

Two-core 600/1000 V cables with solid aluminum conductors

Three-core 600/1000 V cables with stranded copper conductors

Three-core 600/1 000 V cables with solid aluminum conductors

Four-core 600/1000 V cables with stranded copper conductors

Four-core 600/1000 V cables with solid aluminum conductors

Five-core 600/1000 V cables with stranded copper conductors

Multi-core 600/1000 V cables with stranded copper conductors

BS 5467 Standards Armoured MV Power Cables, 1900/3300V

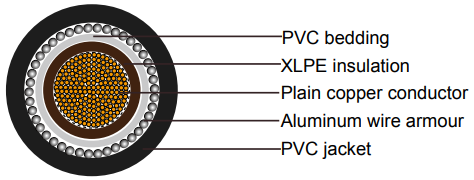

Single-core 1900/3300 V cables with circular stranded copper conductor

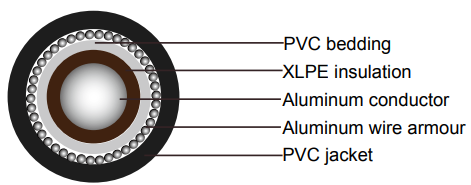

Single-core 1900/3300 V cables with solid aluminum conductor

Three-core 1900/3300 V cables with stranded copper conductors

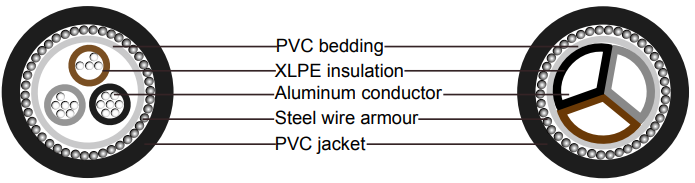

Three-core 1900/3300 V cables with solid aluminum conductors

Get quote by email: info@qingzhou-cable.com

Advantages of the BS5467 cable Single and Multi core

UV resistant

Cables that are not UV resistant will be affected when they are exposed to direct sunlight. The BS5467 cable is UV resistant and can therefore be used above ground in the open air. The outer sheath of the cable will not be harmed by the ultra-violet light which normally dries out a cable or causes cracks or bursts in the sheath. This will preserve the functionality of the cable.

Flame retardant

Cables used to be responsible for spreading fire. The BS5467 cable is flame retardant. This means that this cable is designed in a way that it will not spread fire. Cables with these advantages are often used in buildings and at locations where people live, work and travel / move.

Aluminium Wired Armour (AWA) Cable – BS5467 Single core

The armouring of aluminium wires protects this cable from physical elements. The aluminium ensures that the BS5467 AWA Single core will be lighter in weight compared to a steel wired armouring. This cable is therefore easier to install and less expensive.

Steel Wired Armour (SWA) Cable – BS5467 Multi core

The armouring of steel wires protects the cable from physical elements. Sharp edges and stones can affect cables and in case of underground cables digging equipment might hit the cables. The armouring strengthens the BS5467 SWA Multi core and it will limit the damage inflicted by physical elements. The cable will maintain its functionality afterwards.
