ACSR/TW Bare Aluminum Overhead Transmission & Distribution

ACSR/TW (shaped wire aluminum conductor, steel reinforced) Application

Used for bare overhead transmission, and primary and secondary distribution.

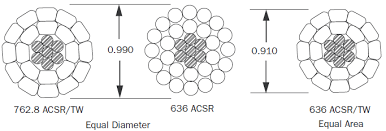

Two design offerings: Equal Area or Equal Diameter when compared to standard round ACSR
Equal area designs allow comparable ampacity in a smaller diameter conductor when compared to a standard round ACSR.
Equal diameter designs allow more ampacity and strength in an equal diameter conductor when compared to a standard round ACSR.

ACSR/TW (shaped wire aluminum conductor, steel reinforced) Standards & References

ASTM B230 Aluminum 1350-H19 Wire for Electrical Purposes
ASTM B498 Zinc-Coated (Galvanized) Steel Core Wire for Use in Overhead Electrical Conductors
ASTM B500 Metallic Coated or Aluminum Clad Stranded Steel Core for Use in Overhead Electrical Conductors
ASTM B779 Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductors, Steel-Reinforced (ACSR/TW)

ACSR/TW (shaped wire aluminum conductor, steel reinforced) Construction

Aluminum 1350-H19 trapezoidal-shaped wires, concentrically stranded about a steel core. Standard core wire coating for ACSR is Class A galvanized (GA2).
Also available in zinc-5% aluminum-mischmetal alloy coating or aluminum-clad (AW)
Additional corrosion protection is available through the application of grease to the core or complete conductor.
Also available in non-specular

Get quote by email: info@qingzhou-cable.com

ACSR/TW (shaped wire aluminum conductor, steel reinforced) Specifications

Shaped Wire Concentric-Lay Compact Aluminum Conductors Steel Reinforced (ACSR/TW) Area Equal to Standard ACSR Sizes
Code Word	Size (kcmil)	Type No.	Cross Sectional Area (in2)		Stranding			Diameter (in)		Weight (lb/1000 ft)			Rated Breaking Strength (lb)	Resistance (Ω/mi)		Ampacity (AMP)+
Code Word	Size (kcmil)	Type No.	Alum.	Total	No of Layers of Alum.	No. of Alum. Wires	No. & Diameter Individual Steel Wire	Steel Core	Complete Conductor	Alum.	Steel	Total	Standard Strength	DC @ 20°C	AC @ 75°C	@ 75°C
Partridge/TW	266.8	16	0.2094	0.2435	2	14	7 x 0.0788	0.2364	0.595	250	116	366	11200	0.3356	0.4103	449
Linnet/TW	336.4	16	0.2642	0.3073	2	16	7 x 0.0885	0.2655	0.667	316	146	462	14000	0.2662	0.3255	519
Oriole/TW	336.4	23	0.2642	0.3259	2	16	7 x 0.1059	0.3177	0.693	317	209	526	17100	0.265	0.3239	525
Merlin/TW	336.4	6	0.2642	0.2788	2	14	1 x 0.1367	0.1367	0.630	315	50	365	8560	0.2693	0.3298	508
Flicker/TW	477	13	0.3747	0.4233	2	18	7 x 0.0940	0.2820	0.776	448	165	613	17200	0.1884	0.2308	641
Hawk/TW	477	16	0.3746	0.4356	2	18	7 x 0.1053	0.3159	0.789	449	206	655	19400	0.1877	0.2299	645
Hen/TW	477	23	0.3745	0.4619	2	20	7 x 0.1261	0.3783	0.820	450	296	746	23600	0.1869	0.2287	653
Parakeet/TW	556.5	13	0.4371	0.4937	2	18	7 x 0.1015	0.3045	0.835	523	192	715	20000	0.1615	0.1980	707
Dove/TW	556.5	16	0.4371	0.5083	2	20	7 x 0.1138	0.3414	0.852	524	241	765	22600	0.1609	0.1973	711
Swift/TW	636	3	0.4995	0.5133	3	27	1 x 0.1329	0.1329	0.850	599	47	646	13500	0.1435	0.1821	740
Rook/TW	636	13	0.4995	0.5643	2	20	7 x 0.1085	0.3255	0.890	597	219	816	22900	0.1413	0.1735	767
Scoter/TW	636	23	0.4994	0.6159	2	22	7 x 0.1456	0.4368	0.942	600	395	995	30400	0.1398	0.1714	783
Grosbeak/TW	636	16	0.4995	0.5808	2	20	7 x 0.1216	0.3648	0.908	599	275	873	25400	0.1408	0.1728	772
Tern/TW	795	7	0.6244	0.6675	2	17	7 x 0.0886	0.2658	0.960	746	146	892	21000	0.1138	0.1405	869
Puffin/TW	795	10	0.6244	0.6919	2	18	7 x 0.1108	0.3324	0.980	747	228	975	25900	0.1133	0.1397	876
Condor/TW	795	13	0.6244	0.7053	2	20	7 x 0.1213	0.3639	0.993	747	274	1021	28200	0.1130	0.1392	880
Drake/TW	795	16	0.6244	0.7261	2	20	7 x 0.1360	0.4080	1.010	748	344	1092	31800	0.1126	0.1386	886
Phoenix/TW	954	5	0.7493	0.7876	3	30	7 x 0.0837	0.2511	1.044	898	131	1029	23700	0.0954	0.1217	956
Rail/TW	954	7	0.7493	0.8011	3	32	7 x 0.0971	0.2913	1.061	900	175	1075	25900	0.0953	0.1214	960
Cardinal/TW	954	13	0.7493	0.8464	2	20	7 x 0.1329	0.3987	1.084	897	329	1226	33500	0.0942	0.1164	985

Shaped Wire Concentric-Lay Compact Aluminum Conductors Steel Reinforced (ACSR/TW) Area Equal to Standard ACSR Sizes
Code Word	Size (kcmil)	Type No.	Cross Sectional Area (in2)		Stranding			Diameter (in)		Weight (lb/1000 ft)			Rated Breaking Strength (lb)	Resistance (Ω/mi)		Ampacity (AMP)+
Code Word	Size (kcmil)	Type No.	Alum.	Total	No of Layers of Alum.	No. of Alum. Wires	No. & Diameter Individual Steel Wire	Steel Core	Complete Conductor	Alum.	Steel	Total	Standard Strength	DC @ 20°C	AC @ 75°C	@ 75°C
Snowbird/TW	1033.5	5	0.8117	0.8534	3	30	7 x 0.0871	0.2613	1.089	974	141	1115	25700	0.0880	0.1126	1004
Ortolan/TW	1033.5	7	0.8117	0.8678	3	32	7 x 0.1010	0.3030	1.102	975	190	1165	28100	0.0879	0.1123	1008
Curlew/TW	1033.5	13	0.8117	0.9169	2	22	7 x 0.1383	0.4149	1.129	971	356	1327	36300	0.0869	0.1077	1035
Avocet/TW	1113	5	0.8742	0.9191	3	30	7 x 0.0904	0.2712	1.129	1049	152	1201	27500	0.0818	0.1048	1050
Bluejay/TW	1113	7	0.8742	0.9347	3	33	7 x 0.1049	0.3147	1.143	1049	205	1254	30300	0.0816	0.1045	1055
Finch/TW	1113	13	0.8742	0.9851	3	38	19 x 0.0862	0.4310	1.185	1053	376	1429	39100	0.0812	0.1035	1071
Oxbird/TW	1192.5	5	0.9366	0.9848	3	30	7 x 0.0936	0.2808	1.167	1123	163	1286	29500	0.0763	0.0981	1095
Bunting/TW	1192.5	7	0.9366	1.0013	3	34	7 x 0.1085	0.3255	1.181	1124	219	1343	32400	0.0762	0.0978	1100
Grackel/TW	1192.5	13	0.9366	1.0554	3	38	19 x 0.0892	0.4460	1.225	1127	403	1530	41900	0.0758	0.0968	1117
Scissortail/TW	1272	5	0.9991	1.0505	3	30	7 x 0.0967	0.2901	1.203	1198	174	1372	31400	0.0715	0.0922	1139
Bittern/TW	1272	7	0.9990	1.0681	3	38	7 x 0.1121	0.3363	1.220	1198	235	1433	34600	0.0714	0.0919	1145
Pheasant/TW	1272	13	0.9990	1.1256	3	39	19 x 0.0921	0.4605	1.264	1202	430	1632	44100	0.0711	0.0909	1162
Dipper/TW	1351.5	7	1.0615	1.1348	3	35	7 x 0.1155	0.3465	1.256	1274	248	1522	36700	0.0672	0.0868	1187
Martin/TW	1351.5	13	1.0615	1.1959	3	42	19 x 0.0949	0.4745	1.300	1278	456	1734	46800	0.0669	0.0858	1205
Bobolink/TW	1431	7	1.1236	1.2017	3	36	7 x 0.1189	0.3567	1.291	1350	263	1613	38900	0.0635	0.0822	1229
Plover/TW	1431	13	1.1239	1.2664	3	39	19 x 0.0977	0.4885	1.337	1353	483	1836	49600	0.0632	0.0812	1248
Lapwing/TW	1590	7	1.2488	1.3351	3	36	7 x 0.1253	0.3759	1.358	1500	292	1792	42200	0.0572	0.0745	1308
Falcon/TW	1590	13	1.2488	1.4071	3	42	19 x 0.1030	0.5150	1.408	1503	537	2040	55100	0.0569	0.0735	1330
Chukar/TW	1780	8	1.3986	1.5120	3	38	19 x 0.0874	0.4370	1.445	1676	387	2063	50700	0.0509	0.0667	1405
Bluebird/TW	2156	8	1.0934	1.8312	4	64	19 x 0.0961	0.4805	1.608	2047	468	2515	61100	0.0424	0.0554	1585

Shaped Wire Concentric-Lay Compact Aluminum Conductors Steel Reinforced (ACSR/TW)
Diameters Equal to Standard ACSR Sizes
Code Word	Size (kcmil)	Type No.	Cross Sectional Area (in2)		Stranding			Diameter (in)		Weight (lb/1000 ft)			Rated Breaking Strength (lb)	Resistance (Ω/mi)		Ampacity (AMP)+
Code Word	Size (kcmil)	Type No.	Alum.	Total	No of Layers of Alum.	No. of Alum. Wires	No. & Diameter Individual Steel Wire	Steel Core	Complete Conductor	Alum.	Steel	Total	Standard Strength	DC @ 20°C	AC @ 75°C	@ 75°C
Monongahela/TW	405.1	6	0.3181	0.3362	2	14	1 x 0.1520	0.1520	0.680	380	61	441	10200	0.2236	0.2741	568
Mohawk/TW	571.7	13	0.4490	0.5074	2	18	7 x 0.1030	0.3090	0.846	537	198	735	20600	0.1572	0.1928	717
Calumet/TW	565.3	16	0.4439	0.5165	2	20	7 x 0.1147	0.3441	0.858	531	245	776	22900	0.1584	0.1942	717
Mystic/TW	666.6	13	0.5236	0.5914	2	20	7 x 0.1111	0.3333	0.913	626	230	856	24000	0.1348	0.1656	790
Oswego/TW	664.8	16	0.5221	0.6072	2	20	7 x 0.1244	0.3732	0.927	625	288	913	26600	0.1347	0.1654	793
Nechako/TW	768.9	3	0.6039	0.6220	3	27	1 x 0.1520	0.1520	0.930	724	61	785	16400	0.1187	0.1510	832
Maumee/TW	768.2	13	0.6034	0.6819	2	20	7 x 0.1195	0.3585	0.977	722	266	988	27700	0.1170	0.1440	862
Wabash/TW	762.8	16	0.5992	0.6966	2	20	7 x 0.1331	0.3993	0.990	717	330	1047	30500	0.1174	0.1446	863
Kettle/TW	957.2	7	0.7518	0.8038	3	32	7 x 0.0973	0.2919	1.060	903	176	1079	26000	0.0949	0.1210	962
Fraser/TW	946.7	10	0.7436	0.8168	3	35	7 x 0.1154	0.3462	1.077	894	248	1142	29600	0.0957	0.1217	963
Columbia/TW	966.2	13	0.7589	0.8573	2	21	7 x 0.1338	0.4014	1.092	908	333	1241	34000	0.0930	0.1150	993
Suwannee/TW	959.6	16	0.7537	0.8762	2	22	7 x 0.1493	0.4479	1.108	903	415	1318	37000	0.0933	0.1152	996
Cheyenne/TW	1168.1	5	0.9175	0.9646	3	30	7 x 0.0926	0.2778	1.155	1100	160	1260	28900	0.0779	0.1001	1081
Genesee/TW	1158	7	0.9095	0.9733	3	34	7 x 0.1078	0.3234	1.165	1092	216	1308	31600	0.0785	0.1005	1081
Hudson/TW	1158.4	13	0.9098	1.0281	2	24	7 x 0.1467	0.4401	1.196	1089	400	1489	39600	0.0776	0.0964	1111
Catawba/TW	1272	5	0.9991	1.0505	3	30	7 x 0.0967	0.2901	1.203	1198	174	1372	31400	0.0715	0.0922	1139
Nelson/TW	1257.1	7	0.9874	1.0557	3	35	7 x 0.1115	0.3345	1.213	1186	231	1417	34200	0.0723	0.0930	1137
Yukon/TW	1233.6	13	0.9689	1.0925	3	38	19 x 0.0910	0.4550	1.245	1167	419	1586	42900	0.0733	0.0937	1140
Truckee/TW	1372.5	5	1.0780	1.1334	3	30	7 x 0.1004	0.3012	1.248	1293	188	1481	33400	0.0663	0.0858	1192

Shaped Wire Concentric-Lay Compact Aluminum Conductors Steel Reinforced (ACSR/TW)
Diameters Equal to Standard ACSR Sizes
Code Word	Size (kcmil)	Type No.	Cross Sectional Area (in2)		Stranding			Diameter (in)		Weight (lb/1000 ft)			Rated Breaking Strength (lb)	Resistance (Ω/mi)		Ampacity (AMP)+
Code Word	Size (kcmil)	Type No.	Alum.	Total	No of Layers of Alum.	No. of Alum. Wires	No. & Diameter Individual Steel Wire	Steel Core	Complete Conductor	Alum.	Steel	Total	Standard Strength	DC @ 20°C	AC @ 75°C	@ 75°C
Mackenzie/TW	1359.7	7	1.0679	1.1418	3	36	7 x 0.1159	0.3477	1.259	1280	250	1530	36900	0.0668	0.0863	1192
Thames/TW	1334.6	13	1.3480	1.1809	3	38	19 x 0.0944	0.4720	1.290	1262	451	1713	46300	0.0677	0.0868	1195
St. Croix/TW	1467.8	5	1.1529	1.2124	3	33	7 x 0.1041	0.3123	1.292	1383	202	1585	35800	0.0620	0.0806	1241
Miramichi/TW	1455.3	7	1.1430	1.2222	3	36	7 x 0.1200	0.3600	1.302	1372	268	1640	39200	0.0624	0.0809	1241
Merrimack/TW	1433.6	13	1.1250	1.2677	3	39	19 x 0.0978	0.4890	1.340	1356	484	1840	49700	0.0631	0.0811	1250
Platte/TW	1569	5	1.2323	1.2957	3	33	7 x 0.1074	0.3222	1.334	1478	215	1693	38200	0.0580	0.0758	1291
Potomac/TW	1557.4	7	1.2232	1.3079	3	36	7 x 0.1241	0.3723	1.345	1468	287	1755	41900	0.0583	0.0759	1292
Rio Grande/TW	1533.3	13	1.2043	1.3571	3	38	19 x 0.1012	0.5060	1.382	1449	519	1968	53200	0.0590	0.0760	1301
Schuylkill/TW	1657.4	7	1.3020	1.3920	3	36	7 x 0.1280	0.3840	1.386	1563	305	1868	44000	0.0548	0.0717	1341
Pecos/TW	1622	13	1.2739	1.4429	3	39	19 x 0.1064	0.5320	1.424	1533	574	2107	57500	0.0557	0.0720	1347
Pee Dee/TW	1758.6	7	1.3810	1.4770	3	38	7 x 0.1319	0.3957	1.427	1658	324	1982	46700	0.0517	0.0679	1389
James/TW	1730.6	13	1.3590	1.5314	3	34	19 x 0.1075	0.5375	1.470	1636	585	2221	59400	0.0522	0.0679	1400
Athabaska/TW	1949.6	7	1.5312	1.6377	3	44	7 x 0.1392	0.4176	1.504	1838	361	2199	51900	0.0466	0.0608	1488
Cumberland/TW	1926.9	13	1.5134	1.7049	3	42	19 x 0.1133	0.5665	1.545	1821	650	2471	65300	0.0469	0.0614	1491
Powder/TW	2153.8	8	1.6912	1.8290	4	64	19 x 0.0961	0.4805	1.602	2030	468	2498	61100	0.0424	0.0554	1583
Santee/TW	2627.3	8	2.0630	2.2268	4	64	19 x 0.1062	0.5310	1.762	2477	571	3048	74500	0.0348	0.0468	1768
