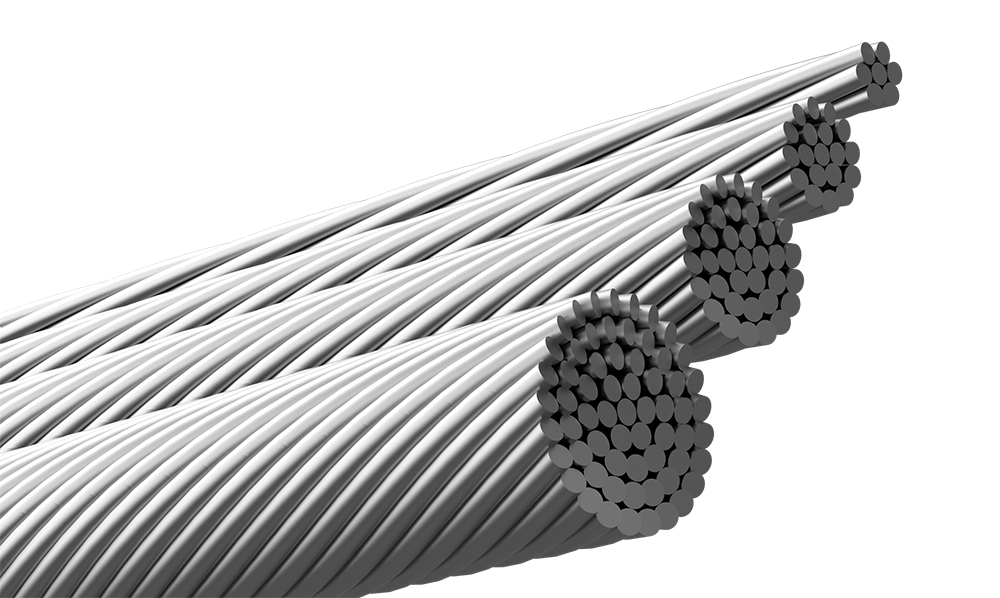

Sweden Aluminium Wire AAC Overhead Aluminum Conductors

Aluminum Conductors

We offer overhead aluminum conductors according to customer demand. We have the possibility to deliver fast as we keep stock of the most common conductors used in Sweden. See below for conductor types currently in stock. Our conductors are according to the standard EN 50182.

AAC Aluminium Wire Types

Type	Previous type	Area		Number of wires	Diameters		Weight	Tensile strength	Calculated resistance DC at20℃	Bending Radius
		Nominal	Total		Wire	Conductor	Weight	Tensile strength	Calculated resistance DC at20℃	Bending Radius
		mm²	mm²		mm	mm	kg/km	kN	Ohm/km	30x
62-AL1	Vitsippa	62	624	7	337	101	1,706	1,030	457	30x
99-AL1	Kattfot	99	993	7	425	128	2,714	1,589	287	30x
159-AL1	Gullviva	157	1,586	19	326	163	4,359	2,617	181	30x
241-AL1	Vallmo	241	2,412	19	402	201	6,628	3,858	119	30x
330-AL1	Renfana	329	3,300	37	337	236	9,102	5,445	87	30x
454-AL1	Akleja	454	4,545	61	308	277	12,575	7,499	63	30x
594-AL1	Hampdan	593	5,936	61	352	317	16,424	9,498	48	30x
774-AL1	Stormhatt	774	7,742	61	402	362	21,421	12,388	37	30x
911-AL1	Solros	910	9,107	61	436	392	25,198	14,572	31	30x

AAC Conductor Factory

High Quality Cable and Conductor, Duable & Lifetime up to 70 Years, Bulk Order Low Price. Looking for Manufacturer of AAC Conductor? We have 3000+ Cables, ISO/ CE Certificates.

Contact Us for Price List: Email: info@qingzhou-cable.com

WhatsApp/WeChat/Skype: +8618625503172
