Costa Rica AAAC Greeley Aluminium Alloy Conductors For 400KV Overhead Transmission Line

AAAC Greeley Conductor Applications

All Aluminum Alloy Conductor, or AAAC, is an electrical cable mainly used for distribution services as well as overhead transmission, both primary and secondary. The aaac cable can also be used for grounding in electrical constructions. The conductor achieves a high ratio of weight to strength due to the durable aluminum alloy. The stranded concentric lay rope conductor for this electrical cable is aluminum alloy 6201-T81 conductor, which is resistant to corrosion.

All aluminum alloy conductor cable has stranded concentric lay rope aluminum alloy 6201-T81 conductor, which is resistant to corrosion and similar in appearance to a 1350-H19 grade aluminum conductor.

Note: DC resistance at 20°C of the 6201-T81 alloy is more resistant to abrasion than those of 1350-H19 grade aluminum.

AAAC Greeley Conductor Standards

1. AAC : IEC 61089, ASTM B231, BS 215 part1, DIN 48201 etc.

2. AAAC : IEC 61089, ASTN B399, BS EN50183, BS 3242, DIN 48201 etc.

3. ACSR : IEC61089, ASTM B232, BS 215 part2, DIN 48204 etc.

4. ACAR : ASTM B524, IEC 61089 etc.

5. AACSR : ASTM B711, DIN 48206, IEC 61089 etc.

6. Aslo we accept the OEM and the new design cable as customers.

AAAC Greeley Conductor Specifications

• Size KCM: 927.2

• Stranding: 37

• Approx. EC Cond. with Equivalent Resistance: 795.0

• Diameter Inches: Indiv. Wire O.D: 0.1583

• Diameter Inches: Comp. Cable: 1.1080

• Cross Sectional Area (sq. inches): 0.7282

• New Weight lb/1000FT: 870.4

• Rated Strength (lbs.): 30,500

• Ampacity: 908 Amps

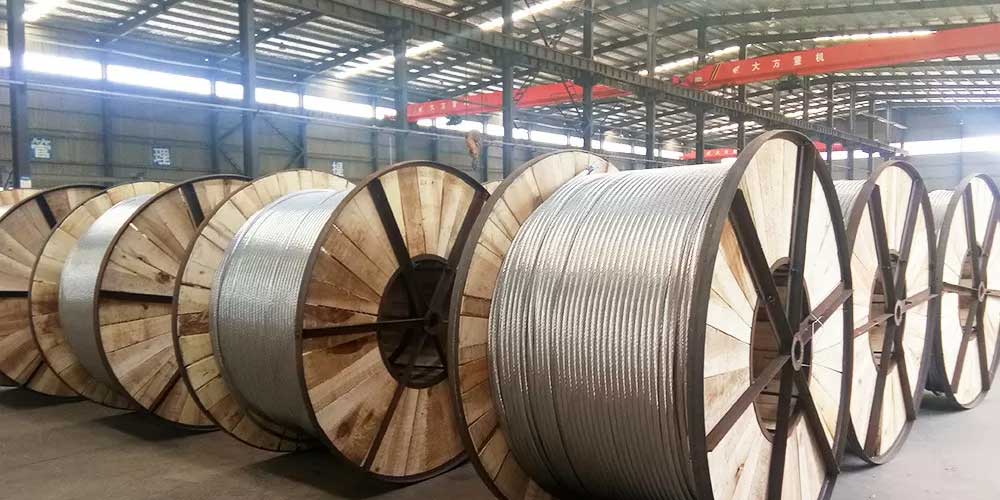

AAAC – All Aluminum Alloy 6201 Conductor
