LV PVC Insulated Twisted Aerial Cables Single & 2 Core 3 & 4 Copper for Australia

Date:2022-09-18

LV PVC Insulated Twisted Aerial Cables Single & 2 Core 3 & 4 Copper for Australia

Application Of Cu Aerial Insulated Cable

Aerial insulated cables are the cables of single-layer or multi-layer aluminum or copper strands twisted on top to extrude the insulation wire.

Overhead line is relative to the cable said, that is, and by the tower will be the wire at a certain height to transmit electricity lines. The ground insulation of overhead lines in high-voltage transmission and distribution networks generally depends on air, and the previous distribution lines (less than 10 kV except for 380 V) generally use bare conductors, but because of the complex distribution environment in urban areas, short-circuit grounding and lightning strike lines often occur, the reliability of power supply is reduced. Therefore, at present, the overhead lines below 10 kV generally use insulated conductors (i.e., the outer layer of conductors wrapped in insulation layer), which is called insulated overhead lines.

0.6/1kV PVC insulated aerial cables to AS/NZS 5000.1. Hard drawn copper conductors Physical data

Nominal conductor area mm	Number and nominal diameter of wires	Nominal conductor diameter	Average insulation thickness	Nominal diameter over insulation	Approximate mass
1 CORE
6	7/1.04	3.1	1	5.3	81
10	7/1.35	4.1	1	6.3	123
16	7/1.70	5.1	1	7.3	183
25	19/1.35	6.8	1.2	9.4	308
35	19/1.53	7.7	1.2	10.3	385
50	19/1.78	8.9	1.4	11.9	522
70	19/2.14	10.7	1.4	13.7	729

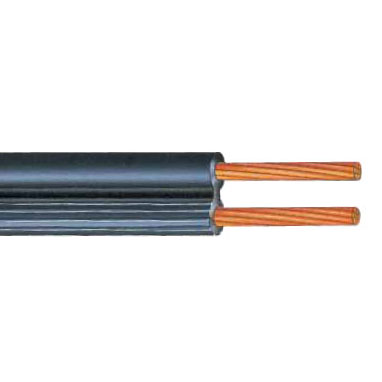

2 CORE
6	7/1.04	3.1	1	5.3x11.1	157
10	7/1.35	4.1	1	6.3x13.l	243
16	7/1.70	5.1	1	7.3x15.1	362
25	19/1.35	6.8	1.2	9.4x19.3	609

Get quote by email: info@qingzhou-cable.com

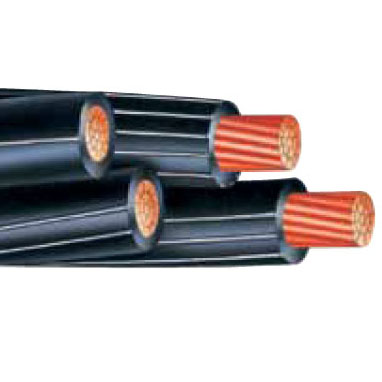

0.6/1kV PVC insulated twisted aerial cables to AS/NZS 5000.1. Hard drawn copper conductors.

Nominal conductor area	Number and nominal diameter of wires	Nominal conductor diameter	Average insulation thickness	Nominal diameter over insulation	Nominal diameter over laid-up cores	Approximate mass
mm2	no./mm	mm		mm	mm	kg/km
3 Core
6	7/1.04	3.1	1	5.3	11.4	240
10	7/1.35	4.1	1	6.3	13.4	372
16	7/1.70	5.1	1	7.3	15.6	558
25	19/1.35	6.8	1.2	9.4	20	915
4 Core
6	7/1.04	3.1	1	5.3	12.7	319
10	7/1.35	4.1	1	6.3	15	495
16	7/1.70	5.1	1	7.3	17.5	742
25	19/1.35	6.8	1.2	9.4	22.5	1218

LV PVC Insulated Twisted Aerial Cables Single & 2 Core 3 & 4 Copper for Australia Electrical Properties

Nominal conductor area	DC resist at 20*C	AC resist at50Hz sor	Inductive reactance at 50Hz	Voltage drop at 50Hz 751	Continuous current carrying capacity. A			Fault current rating	Minimum bending radius (installed)		Min.	Rec. tension		Modulus of elasticity of conductor	Coeff. of linear expansion
Nominal conductor area	DC resist at 20*C	AC resist at50Hz sor	Inductive reactance at 50Hz	Voltage drop at 50Hz 751	Continuous current carrying capacity. A			Fault current rating	Minimum bending radius (installed)		breaking load of cable	Highest everyday tension	Max. working tension	Modulus of elasticity of conductor	Coeff. of linear expansion
mm2	Q/km	Q/km	Q/km	mV/A.m	still air	lm/$ wind	2m/s wind	kA for IS	Core	Cable	kN	kN	kN	GPa	xl0-6/r
3 Core
6	3.17	3.82	0.097	7.75	28	50	58	0.6	25	75	7.01	1.27	1.96	112	17
10	1.88	2.27	0.091	4.54	38	68	78	1.0	30	85	11.82	2.13	3.30	112	17
16	1.18	1.42	0.086	2.85	49	88	104	1.7	35	110	17.83	3.20	4.99	112	17
25	0.749	0.905	0.082	1.81	65	118	138	2.7	40	125	31.20	5.60	8.75	110	17
4 Core
6	3.17	3.82	0.11	6.63	28	50	58	0.6	25	80	9.30	1.69	2.60	112	17
10	1.88	2.27	0.10	3.95	38	68	78	1.0	30	95	15.71	2.80	4.40	112	17
16	1.18	1.42	0.094	2.47	49	88	104	1.7	35	105	23.72	4.20	6.65	112	17
25	0.749	0.905	0.091	1.56	65	118	138	2.7	40	145	41.61	7.50	11.60	110	17

Note:

Reactance and voltage drop are based on three cables laid in flat formation spaced 0.46m apart. The values can also be applied to single-phase circuits or 3-phase circuits with cables in trefoil formation. For single-phase circuits the voltage drop values should be multiplied by 1.155. Continuous current ratings are based on an ambient temperature of 40℃ , maximum conductor temperature of 75℃ and solar radiation intensity of 1 OOOW/m2. Fault current ratings are based are on initial and final conductor temperatures of 75℃ and 150℃ respectively.
