PHILIPPINES Bare Conductor ACSR #12, AWG 6/1 Sale

Widely used as bare cable for overhead transmission lines and also as primary and secondary bare cable for distribution lines.

Bare ACSR Applications

Bare ACSR conductors are intended for use as overhead transmission, primary or secondary distribution conductor. The steel wire core and the outer aluminum wires provide an optimal balance between conductor strength and current carrying capacity, allowing for greater conductor currents at longer spans between supports. This conductor is often used as the messenger for multi conductor neutral supported conductor designs

ACSR Construction

Aluminum alloy 1350-H19 wires concentrically stranded over a steel wire core. The steel wire core is Class A Zinc coated (Code GA2).

Aluminum Conductor Steel Reinforced Specifications

These conductors are manufactured and tested to meet or exceed the following standards:

• ASTM B230 – Aluminum 1350–H19 Wire for Electrical Purposes

• ASTM B231 – Concentric-Lay-Stranded Aluminum 1350 Conductors

• ASTM B232 – Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)

• ASTM B498 – Zinc-Coated (Galvanized) Steel Core Wire for Use in Overhead Electrical Conductors

• CSA C60888 – Zinc-coated steel wires for stranded conductors

• CSA C60889 – Hard-drawn aluminum wire for overhead line conductors

• CSA C61089 – Round wire concentric lay overhead electrical stranded conductors

ACSR Galvanized Steel Wire Core Options

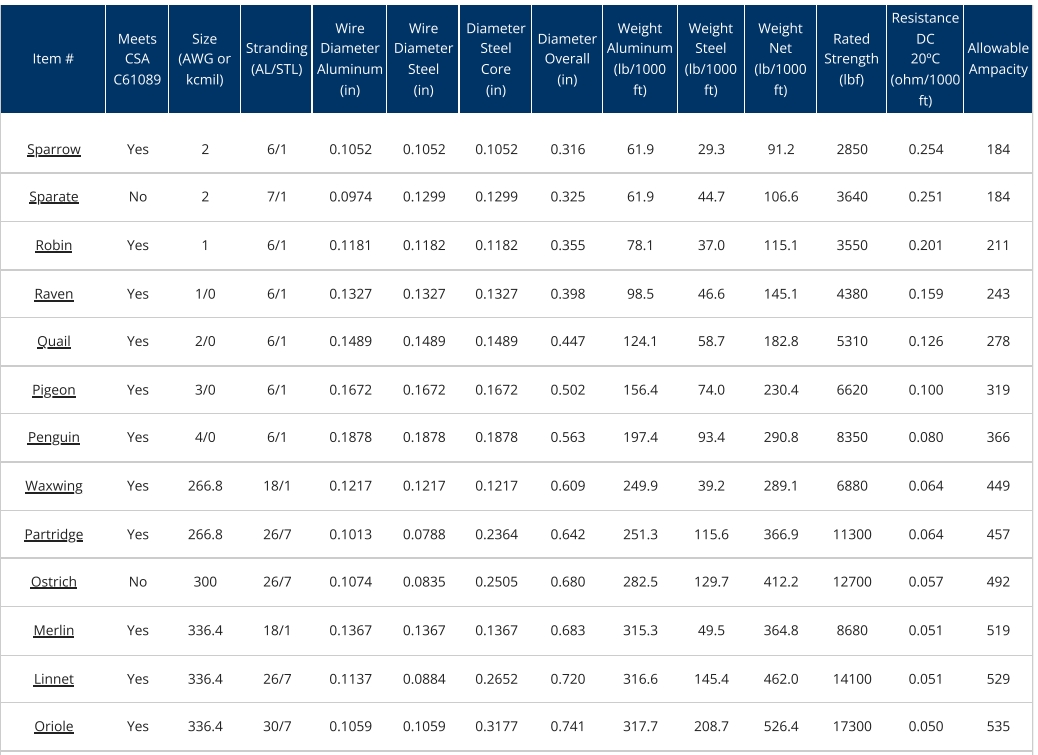

ACSR Part Numbers & Rated Strength - Galvanized Steel Wire Core

ACSR Part Numbers & Rated Strength - Aluminum-Mischmetal Alloy Wire Core

ACSR Options - Codes & Standards
Steel Wire Core:	Galvanized		Aluminum-Mischmetal Alloy
Coating:	Class A	Class C	Zn-5AI-MM
Regular-Strength	Code GA2 ASTM B498	Code GC2 ASTM B498	Code MA2 ASTM B802
High-Strength	Code GA3 ASTM B606		Code MA3 ASTM B803
Extra-High-Strength	Code GA4 ASTM B957		Code MA4 ASTM B958
Ultra-High-Strength	Code GA5 ASTM B957		Code MA5 ASTM B958

STANDARDS - ACSR

• ASTM B230 - Aluminum 1350-H19 Wire for Electrical Purposes

• ASTM B231 - Concentric-Lay-Stranded Aluminum 1350 Conductors

• ASTM B232 - Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)

STANDARDS - Regular-Strength (GA2, GC2)

• ASTM B498 - Zinc-Coated (Galvanized) Steel Core Wire for Use in Overhead Electrical Conductors

STANDARDS - High-Strength (GA3)

• ASTM B606 - High-Strength Zinc-Coated (Galvanized) Steel Core Wire for Aluminum and Aluminum-Alloy Conductors, Steel Reinforced

STANDARDS - Extra-High-Strength (GA4), Ultra-High-Strength (GA5)

• ASTM B957 - Extra-High-Strength and Ultra-High-Strength Zinc-Coated (Galvanized) Steel Core Wire for Overhead Electrical Conductors

STANDARDS - Regular-Strength (MA2)

• ASTM B802 - Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)

STANDARDS - High-Strength (MA3)

• ASTM B803 - High-Strength Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Use in Overhead Electrical Conductors

STANDARDS - Extra-High-Strength (MA4), Ultra-High-Strength (MA5)

• ASTM B958 - Extra-High-Strength and Ultra-High-Strength Class A Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Use in Overhead Electrical Conductors
