Tanzania Market ADSS Cable on High and Medium Voltage Power Line Project

ADSS Fiber Optic Cable 48 Core 600m Span Single-Mode G652D

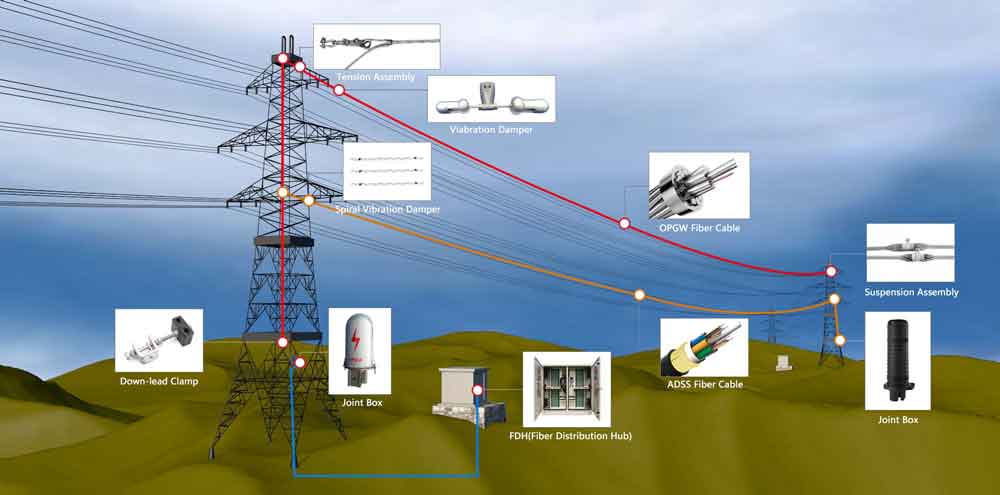

ADSS on high voltage power line

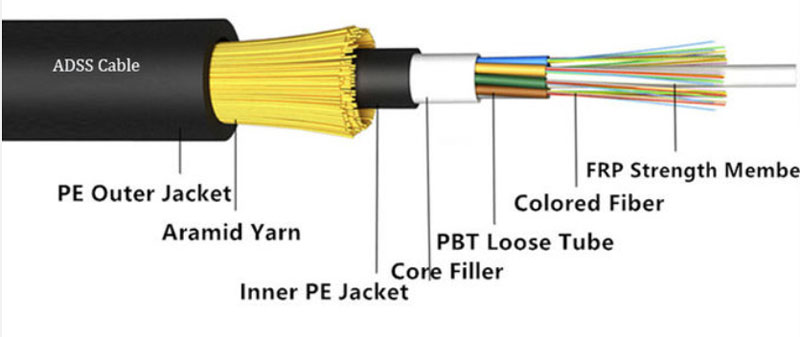

ADSS Fiber Optic Cable 48 Core 600m Span Single-Mode G652D. ADSS cable is loose tube stranded. The 250um bare fibers are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After stranded layer of armaid yarns are applied overthe inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath

48 cores ADSS fiber optic cable, G652D, 120m Span

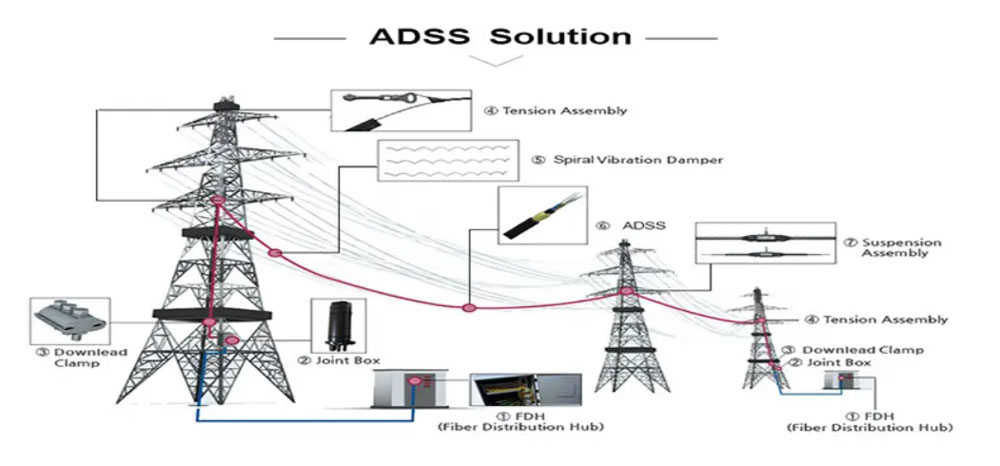

ADSS on medium voltage power line

Single-mode G.652D with doped silica material, ensuring high-purity optical signal transmission and low attenuation

Outstanding Optical Performance:

• Attenuation coefficient less than 0.35 dB/km at 1310 nm, and even lower, at 0.21 dB/km at 1550 nm.

• Zero dispersion wavelength between 1300 ~ 1324 nm, with a zero dispersion slope less than 0.092 ps/(nm².km).

• PMDQ (Quadratic Mean) less than 0.2 ps/km½, minimizing temporal distortions in signals transmitted over long distances.

ADSS Cable Tension tower

Mechanical strength up to 400kN

Suspension tower

Mechanical strength up to 400kN, Creepage distance: 21mm/kV, 25mm/kV, 27mm/kV, 33mm/kV, 40mm/kV (Rated Voltage: 20Kv; Rated Mechanical Load: 20KN; Structure Height H: 330mm; Insulating distance Li.:240mm; Min Creepage distance: 850mm; Lightning Impulse Withstand: 80 Voltage(peak)/KV; P.F Wet withstand voltage(virtual value: 50KV

Dome type(vertical) Joint box enclosure metal or galvanised to support up to 144 cores of optic fiber

1. Work Temperature - 40 ⁰C ~ + 65 ⁰C

2. No. of Cable Inlet/Outlet 6 (2 oval)

3. No. of Splice tray 4 - Max. 6

4. Tray Capacity 12 core - Max. 24 core

5. Splice Capacity 48 core - Max. 144 core

6. Splice Method Fusion, Mechanical

7. Splice Protector Heat Shrinkable Sleeve, Mechanical Splicer Cable Diameter φ8mm ~φ24mm

8. Tension Member (Galvanized Steel Wire), FRP

9. Dimension 522 × 211 × 174 mm

10. Weight 2.0kg

ADSS Fiber Optic Cable Tension set

Short Span ADSS Tension Set complete with Dead-end components, Structural Reinforcing Rods, Thimble Clevis etc. Available diameter of cable: 12.6 - 13.5mm

Long Span ADSS Tension Set complete with Dead-end components, Structural Reinforcing Rods, Thimble Clevis etc. Available diameter of cable: 15.6 - 16.5mm

ADSS Suspension set

Short span ADSS Suspension set complete with Rubber insert, Aluminium housing and U-shackle. Available diameter of cable: 13.0 -13.6mm

Long span ADSS Suspension set complete with Rubber insert, Aluminium housing and U-shackle. Available diameter of cable: 13.0 -13.6mm

Cable tray frame/Bracket

Material type: Aluminum alloy, Working load:

15kN, Weight: 0.2Kg

Spiral vibration damper with its guy grip

Material type: Plastic of high strength and elastic; Diameter range: 11.71-15.0mm; Length: 1350mm; Weight: 0.3Kg

Suspension clamps

Material type: Galvanized steel andrubber; Breaking load: 15kN; Weight: 0.2Kg; Diameter range 13.0-13.6mm

Tension clamps

Short span ADSS Tension Clamp (Available Diameter of Cable 13.0  -13.6mm, Less than 100m span)

Long/free span ADSS Tension Clamp (Available Diameter of Cable 13.0 - 13.6mm, Span 600-800m)
