A2XS(F) 2YT 6/10, 12/20, 20/35 kV - Aerial bundled medium voltage power cables with PE sheath

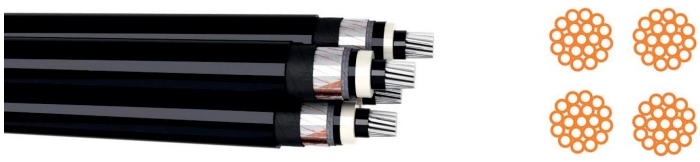

A2XS(F) 2YT 6/10, 12/20, 20/35 kV Cable Construction

Conductor                        : round, stranded and compacted alum., class 2.


Inner semi-conductive layer : XLPE compound.


Insulation                         : XLPE type XI 1.


Outer semi-conductive layer : XLPE comp. around insulation.


Water resistant element       : layer of semi-conductive water absorbing tape.


Metal screen                      : CU wires conc. laid and one contact of CU tape.


Water resistant element       : layer of semi-conductive water absorbing tape.


PE sheath                         : PE compound, type EP 1.

Messenger (for 10, 20 kV)   : galvanized steel messenger 50 mm².

Messenger (for 35 kV)        : galvanized steel messenger 70 mm².

6/10, 12/20, 20/35 kV Aerial bundled Cable- Technical data and tests

Operating voltage                           : 6/10; 12/20; 20/35 kV.


Test voltage = 2.5Uo (HD.620.S2),


 AC (50Hz) - 5 min   :   6/10 kV = 15 kV;
  12/20 kV = 30 kV;
  20/35 kV = 50 kV.


Highest system voltage, Umax          :   6/10 kV = max. 12 kV;
  12/20 kV = max. 24 kV;
  20/35 kV = max. 40 kV.

Conductor resistance at 20o C          : according to EN 60228 class 2.


Core temperature, max                    : 90° C in continuous operation.


Max. short circuit temperature          : 250° C , not more than 5 sec.


Overload temperature                      : 130° C / 100h per year max.


Level of partial discharge                 : no more than 2pC.


Bending radius, min                       : 15 x D.


Dielectric factor of losses, 50 Hz       : at 20°C, (0.8-3)x10-4.


Spec.volume insulation resistance     : at 20°C, min 1015 Ω x cm.


Intensity of electric field                  : max. 6.9-5.3 kV/mm.


Max. tensile force during laying        : for Cu conductors - 50 N/mm².


                                                    for Al conductors - 30 N/mm².


Breaking load of messenger, min      : for 50 mm2 = 60 kN.
  for 70 mm² = 82 kN.


Modulus of elasticity of messenger    : 175 kN/mm²
.

Packing length on wooden drums     : min. 200 m.

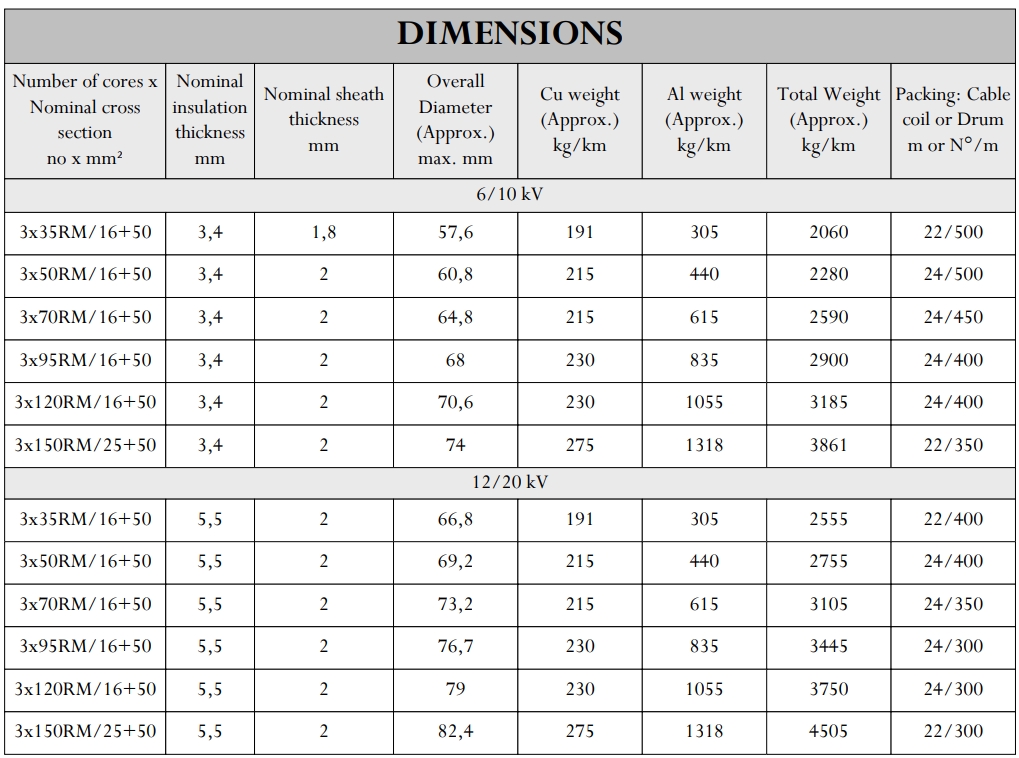

A2XS(F) 2YT 6/10, 12/20, 20/35 kV  ABC Cable -Available constructions


Single Al core                            : 1x(25 - 150)mm²


Standard cross section of metallic


 screen for conductor sizes          :


from 25   mm² to 120 mm²        : 16mm²;


from 150 mm² to 300 mm²        : 25mm²;


from 400 mm² to 630 mm²        : 35mm².

A2XS(F) 2YT Cable Standards

Cable                            : HD 620.S2, IEC 60502-2, SRPS N.C5.231.


Messenger                     : HD 620.S2.


Conductors                    : EN 60228.


Conductor shape            : RM - class 2 conductor acc. to IEC 60228 and VDE 0295.


Inner sheath                  : N.C0.195.


Water penetration in the


region of metallic screen  : IEC 60502-2 annex F (125x4h, 90°C).

Aerial bundled medium voltage power cables with PE sheath - Applications

These cables are suitable for medium voltage power distribution in distribution networks (6/10(12);12/20(24) kV).

They may be put on the overhead lines in old and residential areas.

Provides a shortcut to electrification without affecting the townscape and its environs.

These cables can be strung safely on the same poles with low-voltage and telecommunication cables and have water resistant properties.
