Mozambique 400 kV Overhead Transmission Line--ACSR TERN AACSR_AW Pastel
Mozambique 400 kV Overhead Transmission Line--ACSR TERN / AACSR_AW Pastel
PROJECT: The 400 kV Overhead Transmission Line from Matambo 400 kV Substation in Mozambique to Phombeya 400 kV Substation in Ma- lawi and the Extension of Phombeya 400 kV Substation

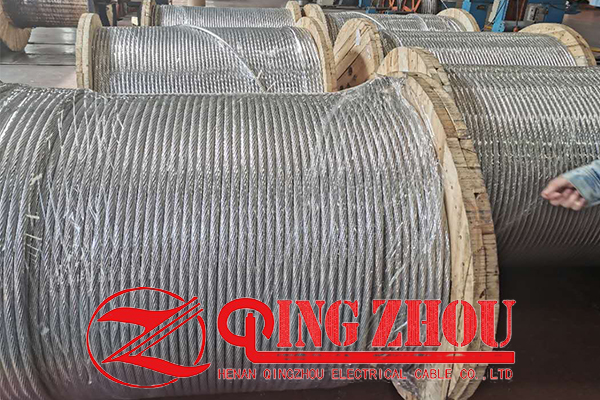

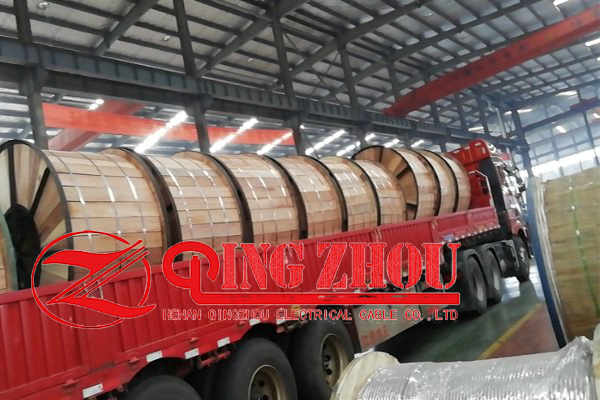

PRODUCTS: ACSR TERN conductor; AACSR PASTEL 865 conductor
SERVICE: As part of a Project to build a 400 kV power line in Mozambique and Malawi, we will give the best price offer for the cables
HENAN QINGZHOU CABLE CO,.LTD
Add: West Industrial Park, Zhulin Town, Gongyi City, Henan Province, China.
Contact: Chloe E-mail: info@qingzhou-cable.com Mob & WhatsApp: +86-18625503172 Tel: +86-371-61176830
TECHNICAL DATA SHEET-ACSR TERN
No. | Bidder's Guaranteed Data - 400 kV OHL Description | Minimum Requirements | Data offered by Bidder | |
Unit | Data | |||
12. |
Phase Conductors | |||
12.1 | For the line part: | |||
12.2 | General information and data: | |||
12.3 | Manufacturer | company | - | Henan Qinghzou Cable CO,.LTD |
12.4 | Standards for design (construction and material) | standard | ASTM B232 | ASTM B232 |
12.5 | Conductor | type | ACSR Tern | ACSR Tern |
12.6 | Aluminium | mm2 | 403.77 | 403.77 |
12.7 | Steel | mm2 | 27.83 | 27.83 |
12.8 | Total | mm2 | 431.6 | 431.6 |
12.9 | Conductor diameter | mm ø | 27.03 | 27.03 |
12.10 | Conductor structure/stranding: | |||
12.11 | Aluminium | No / mm ø | 45x3.38 | 45x3.38 |
12.12 | Steel | No / mm ø | 7x2.25 | 7x2.25 |
12.13 | Ultimate breaking load,min. | kN | 98.3 | 98.3 |
12.14 | · max. working stress | N/mm² | ||
12.15 | · EDS (25°C, still air) | N/mm² | ||
12.16 | DC resistance at 200C, max | Ohm/km | 0.07192 | 0.07192 |
12.17 | Weight | kg/km | 1337 | 1337 |
12.18 | Modulus of elasticity | N/mm2 | 64000 | 64000 |
12.19 | Thermal expansioncoefficient | 1/°C | 0.0000210 | 0.0000210 |
12.20 | Conductor length on drum | m | 3200 | |
12.21 | Gross weight per drum incl. conductor | kg | 4658 | |
12.22 | Long term thermal current carrying capacity (for 50 °C ambient temperature, 0.6 m/sec wind velocity, solar radiation of 1200W/m2 for 80 °C conductor end-temperature) | A | 610 | |
TECHNICAL DATA SHEET-AACSR_AW Pastel 865
No. | Bidder's Guaranteed Data - 400 kV OHL Description | Minimum Requirements | Data offered by Bidder | |
Unit | Data | |||
12. |
Phase Conductors | |||
12.23 | For the Zambezi River Crossing section: | |||
12.24 | General information and data: | |||
12.25 | Manufacturer | company | - | Henan Qingzhou Cable CO,.LTD |
12.26 | Standards for design (construction and material) | standard | EN 50182 | EN 50182 |
12.27 | Conductor | type | AACSR / AW Pastel 865 | AACSR / AW Pastel 865 |
12.28 | Aluminium | mm2 | 717.3 | 717.3 |
12.29 | Steel | mm2 | 148.1 | 148.1 |
12.30 | Total | mm2 | 865.4 | 865.4 |
12.31 | Conductor diameter | mm ø | 38.1 | 38.1 |
12.32 | Conductor structure/stranding: | |||
12.33 | Aluminium | No / mm ø | 66 x 3.72 | 66 x 3.72 |
12.34 | Steel | No / mm ø | 19 x 3.15 | 19 x 3.15 |
12.35 | Ultimate breaking load,min. | kN | 430.29 | 430.29 |
12.36 | · max. working stress | N/mm² | ||
12.37 | · EDS (25°C, still air) | N/mm² | ||
12.38 | DC resistance at 20°C, max | Ohm/km | 0.0465 | 0.0465 |
12.39 | Weight | kg/km | 3143,2 | 3143,2 |
12.40 | Modulus of elasticity (final) | N/mm² | 77500 | 77500 |
12.41 | Thermal expansioncoefficient | 1/0C | 0.0000185 | 0.0000185 |
12.42 | Conductor length on drum | m | 1400 | |
12.43 | Gross weight per drum incl. conductor | kg | 4780 | |
