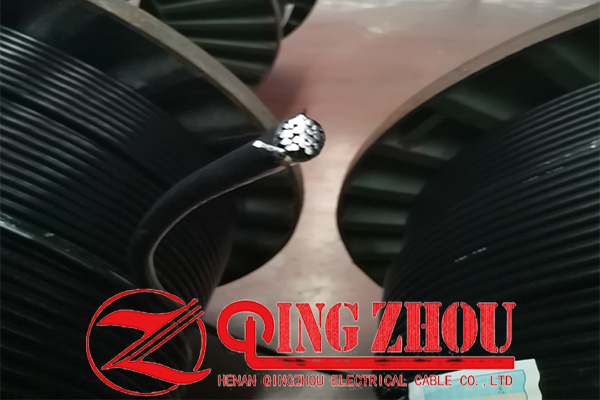

cable triplex self-supported 600 V de 2x2+2 AWG 2X2(AL/XLPE)+2AWG(AL ALLOY/XLPE) for Colombia
Cable Service Drop Wire Self-supported 600 V de 2x2+2 AWG for Sale in Colombia
Application:
The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃. Quality AAC AAAC ACSR triplex duplex self supporting aerial bundle cable abc cable for sale
HENAN QINGZHOU CABLE CO.,LTD
Add: West Industrial Park, Zhulin Town, Gongyi City, Henan Province, China.
Contact: Chloe E-mail: info@qingzhou-cable.com Mob & WhatsApp: +86-18625503172
Tel: +86-371-61176830
Web: www.qingzhou-cable.com
cable triplex self-supported 600 V de 2x2+2 AWG
TECHNICAL SPECIFICATION | |||

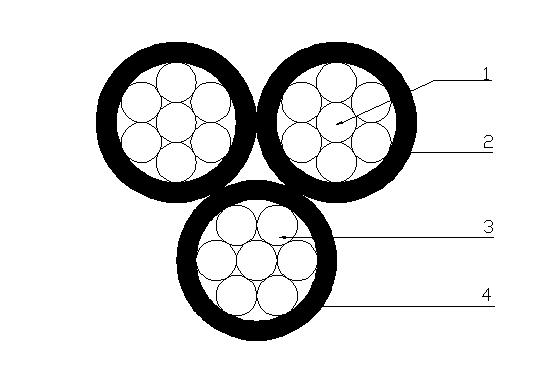

1. AAC 2. XLPE 3. AAAC 4. XLPE | |||
No. | Description | Unit | Data |
1 | Model | - | AAC/XLPE2*8AWG+AAAC/XLPE1*8AWG |
2 | Manufacturer | - | HENAN QINGZHOU CABLE CO.,LTD |
3 | Country | - | CHINA |
4 | Standard | - | ASTM B230 |
5 | Rated Voltage | kV | 1 |
6 | Phase Conductor | ||
6.1 | Material | - | AAC |
6.2 | Number of cores | - | 2 |
6.3 | Nominal size | AWG | 8 |
6.4 | Number of wires | ≥ | 6 |
6.5 | Insulation | XLPE | |
6.6 | Average Thickness | mm | 1.14 |
6.7 | Minimum Thickness | mm | 1.04 |
6.8 | Diameter of single insulated core(Appr | mm | 9.69 |
6.9 | Max. DC resistance of conductor at 20° | Ω/km | 0.8577 |
7 | Netural Conductor | ||
7.1 | Material | - | AAAC |
7.2 | Number of cores | - | 1 |
7.3 | Nominal size | AWG | 8 |
7.4 | Number of wires | ≥ | 6 |
7.5 | Insulation | XLPE | |
7.6 | Average Thickness | mm | 1.14 |
7.7 | Minimum Thickness | mm | 1.04 |
7.8 | Diameter of single insulated core(Appr | mm | 9.69 |
7.9 | Max. DC resistance of conductor at 20° | Ω/km | 0.998 |
8 | Cable | ||
8.1 | Approx. overall diameter | mm | 20.9 |
8.2 | Approx. weight of complete cable | kg/km | 358 |
9 | AC voltage test | - | 3.5kV/1min，No breaking |
10 | Min. bending radius at laying in terms of cable diameter | D | 6×D |
11 | Max. conductor temperature on continuous | °C | 90 |
12 | Maximum conductor short time temperature |
°C |
250 |
TECHNICAL SPECIFICATION | ||||

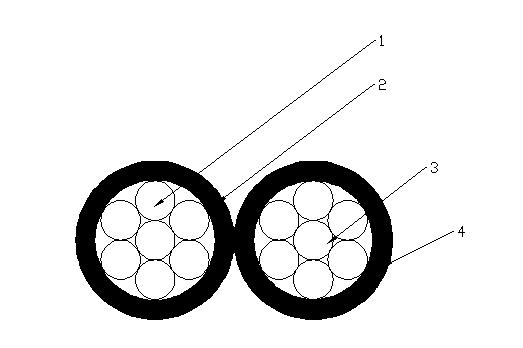

1. AAC 2. XLPE 3. AAAC 4. XLPE | ||||
No. | Description | Unit | Data | |
1 | Model | - | AAC/XLPE1*8AWG+AAAC/XLPE1*8AWG | |
2 | Manufacturer | - | HENAN QINGZHOU CABLE CO.,LTD | |
3 | Country | - | CHINA | |
4 | Standard | - | ASTM B-230 | |
5 | Rated Voltage | kV | 1 | |
6 | Phase Conductor | |||
6.1 | Material | - | AAC | |
6.2 | Number of cores | - | 1 | |
6.3 | Nominal size | AWG | 8 | |
6.4 | Number of wires | ≥ | 6 | |
6.5 | Insulation | XLPE | ||
6.6 | Average Thickness | mm | 1.14 | |
6.7 | Minimum Thickness | mm | 1.04 | |
6.8 | Diameter of single insulated core(Appr | mm | 9.69 | |
6.9 | Max. DC resistance of conductor at 20° | Ω/km | 0.8577 | |
7 | Netural Conductor | |||
7.1 | Material | - | AAAC | |
7.2 | Number of cores | - | 1 | |
7.3 | Nominal size | AWG | 8 | |
7.4 | Number of wires | ≥ | 6 | |
7.5 | Insulation | XLPE | ||
7.6 | Average Thickness | mm | 1.14 | |
7.7 | Minimum Thickness | mm | 1.04 | |
7.8 | Diameter of single insulated core(Appr | mm | 9.69 | |
7.9 | Max. DC resistance of conductor at 20° | Ω/km | 0.998 | |
8 | Cable | |||
8.1 | Approx. overall diameter | mm | 19.4 | |
8.2 | Approx. weight of complete cable | kg/km | 238 | |
9 | AC voltage test | - | 3.5kV/1min，No breaking | |
10 | Min. bending radius at laying in terms of cable diameter | D | 6×D | |
11 | Max. conductor temperature on continuous | °C | 90 | |
12 | Maximum conductor short time temperature | °C | 250 | |
