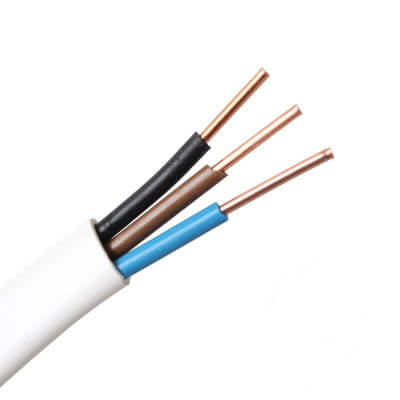

flexible electrical wire, electric wire and cable 16mm, copper electrical wire

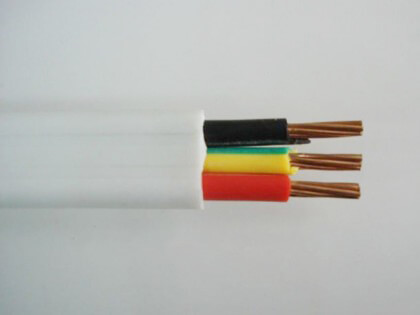

.jpg "twin-&-earth-cable-1(1).jpg")
Conductor:Plain bare copper conductors(99.99% purity)
Class 1 solid:1.0mm², 1.5mm² and 2.5mm²
Class 2 stranded:4.0mm², 6.0mm², 10.0mm² and 16.0mm²
Insulation:PVC /LSOH
Sheath:PVC (Polyvinyl Chloride)/LSOH
Temperature Rating:Max +70ºC
Get price list by E-mail:info@qingzhou-cable.com

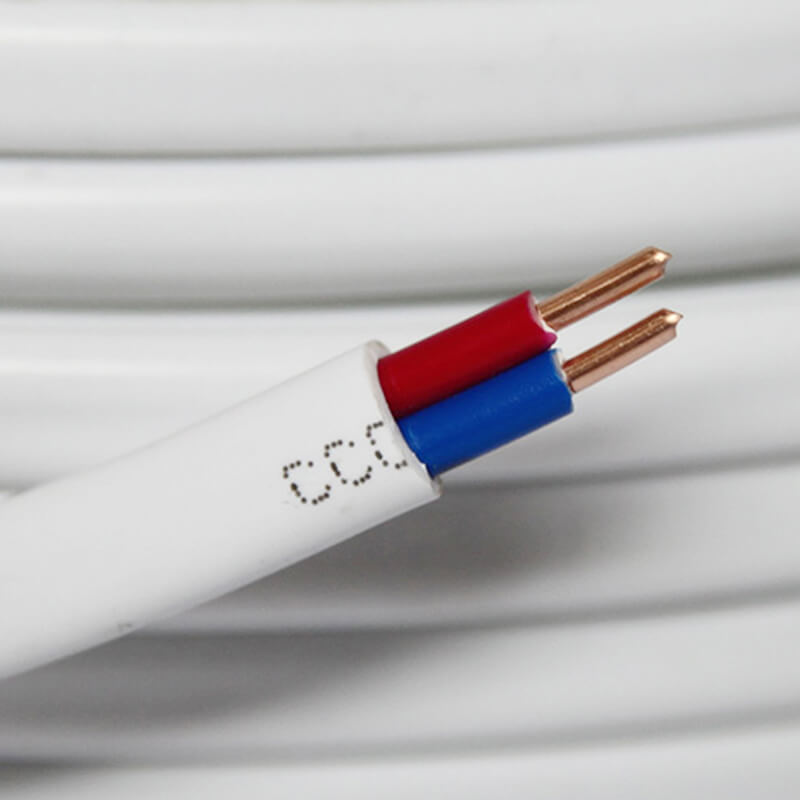

►Application
Twin & Earth cable (also known as T&E or TE) is a flexible flat sheathed mains electricity wiring cable used in a wide range of domestic electrical applications with a voltage rating of 300/500V. It can be installed in fixed wiring installations in dry or damp premises clipped to surface, on trays or in free air where there is no risk of mechanical damage. It is suitable for laying in conduit or trunking where mechanical protection is required.

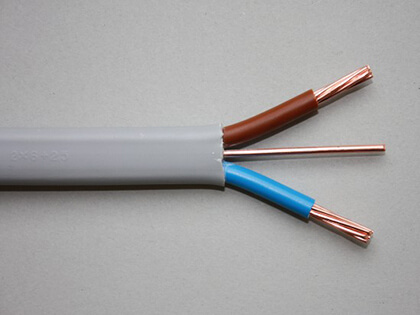

►Construction
--Standard: AS/NZS5000.2:2006
--Voltage: 450/750V
--Conductor: Annealed Copper wire
--Insulation: V90-PVC
--Sheath: 3V90-PVC
--Max Operating Temp.: 75 °C continuous
►Characteristics
Standard: AS/NZS5000
Conductor: BS 6360 Class 1 or 2, Stranded/solid copper wire
Insulation: BS 7655 TI 1 PVC compound
Operating Temperature: max 70C
Min Bending radius: 6D
Rated voltage: 450V/750V
Nominal sectional (size): 1.0mm, 1.5mm, 2.5mm, 4.0mm, 6.0mm2, 10mm, 16mmSq.
■ Technical Data
Flat TPS 450/750 V 2/C | ||||
Size(mm2) | Conductor Structure (No./mm) | Overall Diameter (mm) | Cable Weight (kg/km) | |
1 | 1/1.13 | 6.7 x 4.3 | 55 | |
1.5 | 7/0.50 | 7.4 x 4.7 | 70 | |
2.5 | 7/0.67 | 9.0 x 5.5 | 105 | |
4 | 7/0.85 | 10.6 x 6.5 | 165 | |
6 | 7/1.04 | 11.8 x 7.1 | 215 | |
10 | 7/1.35 | 14.4 x 8.5 | 350 | |
16 | 7/1.70 | 16.7 x 9.7 | 435 | |
Flat TPS 450/750 V 2/C+E | ||||
1 | 1/1.13 | 4.6 x 9.4 | 90 | |
1.5 | 7/0.50 | 4.7 x 10.2 | 110 | |
1.5 | 1/1.38 | 4.7 x 9.9 | 115 | |
2.5 | 1/1.78 | 5.5 x 12.1 | 175 | |
2.5 | 7/0.67 | 5.5 x 12.4 | 165 | |
4 | 7/0.85 | 6.5 x 14.0 | 200 | |
6 | 7/1.04 | 7.1 x 15.2 | 285 | |
10 | 7/1.35 | 8.5 x 18.6 | 425 | |
16 | 7/1.70 | 9.7 x 21.4 | 610 | |
Flat TPS 450/750 V 3/C | ||||
1 | 1/1.13 | 9.1 x 4.3 | 75 | |
1.5 | 7/0.50 | 10.2 x 4.7 | 100 | |
2.5 | 7/0.67 | 12.4 x 5.5 | 160 | |
4 | 7/0.85 | 14.7 x 6.5 | 245 | |
Flat TPS Cable 450/750 V 3/C+E | ||||
1 | 1/1.13 | 11.5 x 4.3 | 95 | |
1.5 | 7/0.50 | 12.9 x 4.7 | 125 | |
2.5 | 7/0.67 | 15.9 x 5.5 | 200 | |
4 | 7/0.85 | 18.1 x 6.5 | 280 | |
6 | 7/1.04 | 20.0 x 7.1 | 365 | |
10 | 7/1.35 | 24.5 x 8.5 | 545 | |
16 | 7/1.70 | 28.7 x 9.9 | 830 | |
Flat TPS 450/750 V 4/C | ||||
1 | 1/1.13 | 11.5 x 4.3 | 95 | |
1.5 | 7/0.50 | 12.9 x 4.7 | 125 | |
2.5 | 7/0.67 | 15.9 x 5.5 | 220 | |
4 | 7/0.85 | 18.9 x 6.5 | 320 | |

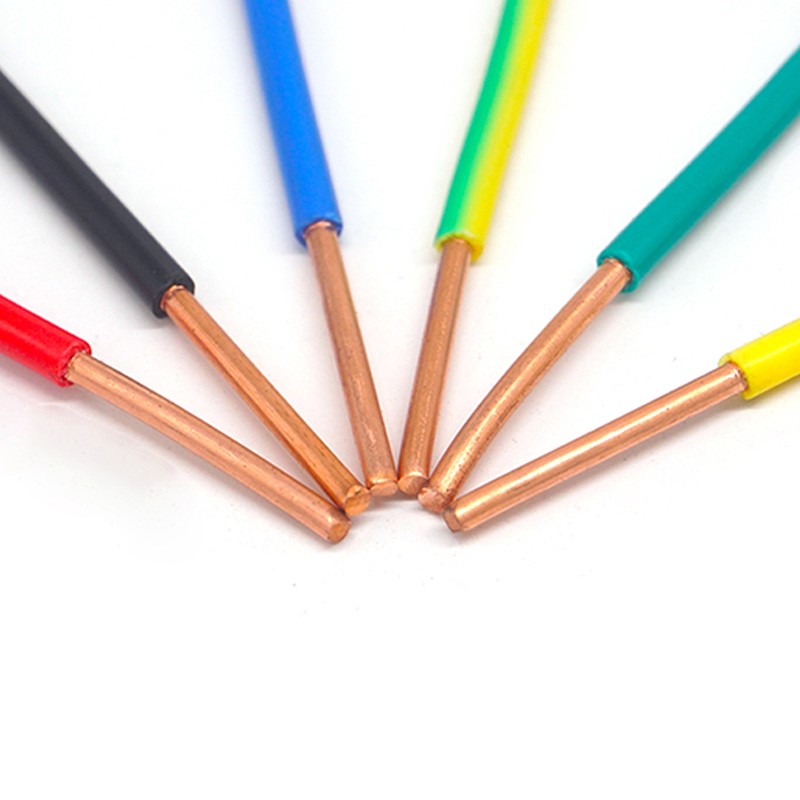

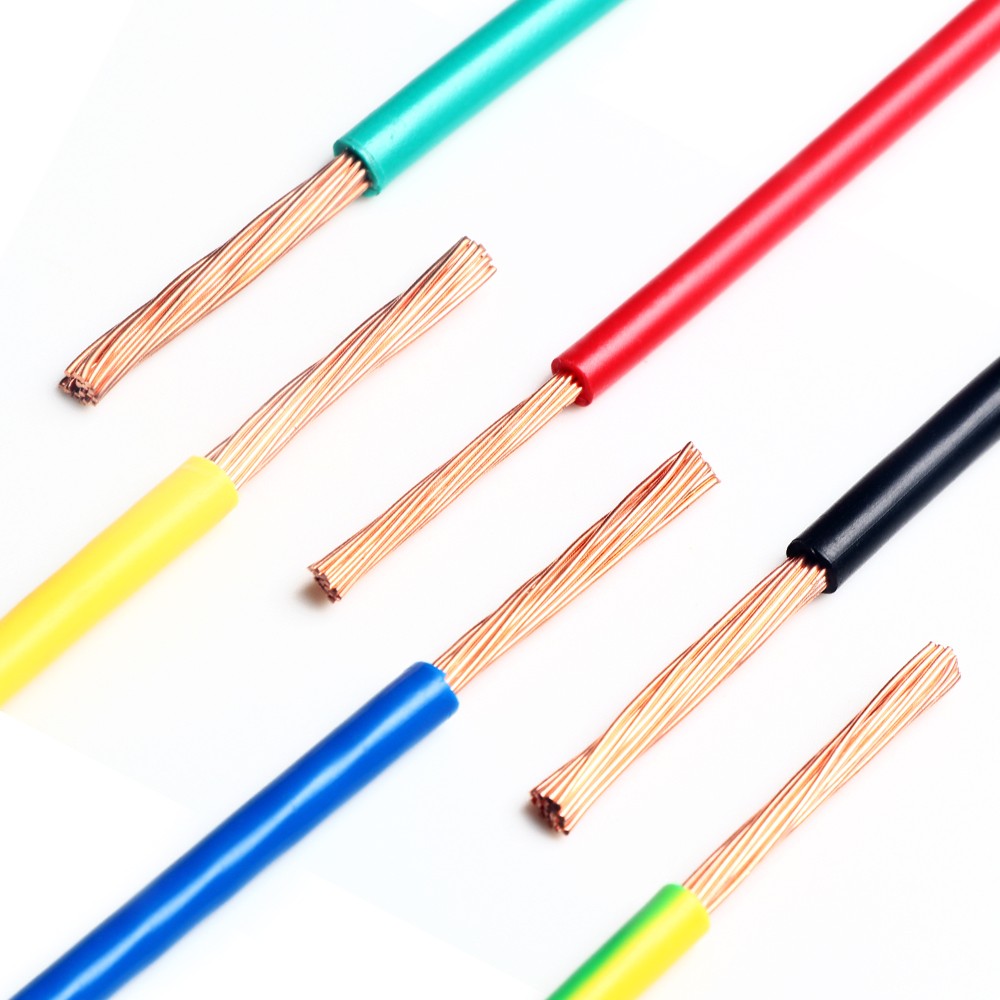

class 1 solid:H07V-U
class 2 stranded:H07V-R
class 5:flexible H07V-K
Insulation:PVC compound type TI 1
U0/U:450/750V
Standard:IEC 60227, BS 6004, VDE0281, GB/T5023
Get price list by E-mail:info@qingzhou-cable.com
►Construction
Conductors: annealed copper conductor acc. to EN 60228:
class 1 solid -H07V-U,
class 2 stranded H07V-R,
class 5 flexible H07V-K
Insulation: PVC compound type TI 1
Color of insulation: green/yellow, blue, black, brown or other Colors
U0/U: 450/750V
Standard: IEC 60227, BS 6004, VDE0281, GB/T5023
►Characteristics
Maximum conductor operating temperature: +70℃
Lowest ambient temperature for fixed installation: -30℃
Lowest installation temperature: -5℃
Maximum short-circuit conductor temperature: +160℃
Test voltage: 2500V
►Application
Installation in surface mounted or embedded conduits, or similar closed systems. Suitable for fixed Installation in, or on, lighting or control gear for voltages up to 1000V a.c. or, up to 750V d.c. to earth.

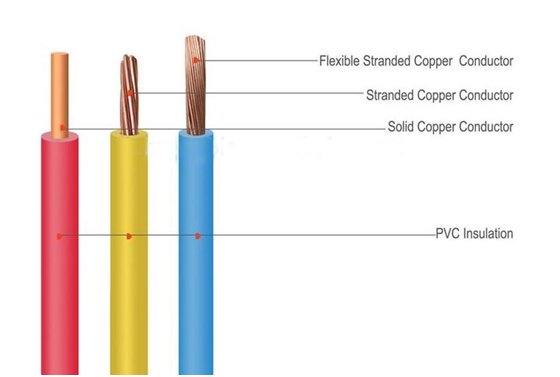

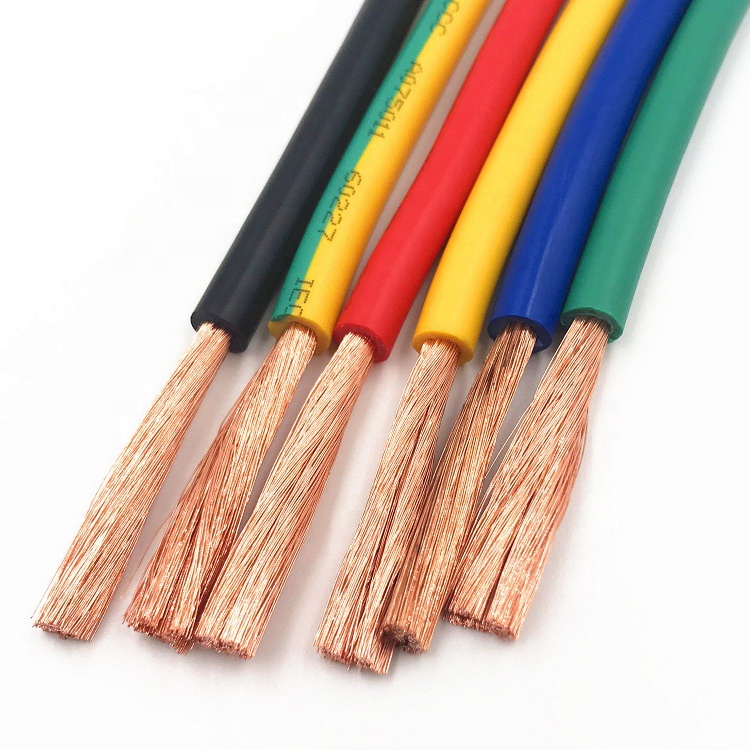

►Structure
■ Technical Data
Number and cross- | Approximate overall | Approximate net | Maximum conductor | Minimum |
sectional area of | diameter | weight | resistance | insulation resistance |
conductor | of cables | at temperature 20℃ | at temperature 70℃ | |
mm2 | mm | Kg/km | Ω/km | MΩ•km |
H07V-U | ||||
1.5 | 2.78 | 21 | 12,1 | 0,011 |
2.5 | 3.38 | 33 | 7,41 | 0,010 |
4 | 3.85 | 48 | 4,61 | 0,0087 |
6 | 4.36 | 68 | 3,08 | 0,0074 |
H07V-R | ||||
1.5 | 2.96 | 22 | 12,1 | 0,010 |
2.5 | 3.64 | 35 | 7,41 | 0,0099 |
4 | 4.15 | 50 | 4,61 | 0,0082 |
6 | 4.72 | 71 | 3,08 | 0,0070 |
10 | 6.05 | 117 | 1,83 | 0,0067 |
16 | 7.10 | 175 | 1,15 | 0,0056 |
25 | 8.82 | 274 | 0,727 | 0,0053 |
35 | 9.90 | 364 | 0,524 | 0,0046 |
50 | 11.70 | 501 | 0,387 | 0,0046 |
70 | 13.50 | 704 | 0,268 | 0,0040 |
95 | 15.70 | 957 | 0,193 | 0,0039 |
120 | 17.41 | 1211 | 0,153 | 0,0035 |
150 | 19.35 | 1489 | 0,124 | 0,0035 |
185 | 21.64 | 1865 | 0,0991 | 0,0035 |
240 | 24.38 | 2378 | 0,0754 | 0,0034 |
300 | 27.12 | 2959 | 0,0601 | 0,0033 |
400 | 30.67 | 3832 | 0,0470 | 0,0031 |
H07V-K | ||||
1.5 | 2.98 | 22 | 13.3 | 0.0100 |
2.5 | 3.62 | 34 | 7.98 | 0.0095 |
4 | 4.19 | 50 | 4.95 | 0.0078 |
6 | 4.77 | 71 | 3.30 | 0.0068 |
10 | 7.04 | 120 | 1.91 | 0.0065 |
16 | 8.15 | 177 | 1.21 | 0.0053 |
25 | 9.9 | 269 | 0.780 | 0.0050 |
35 | 11.28 | 363 | 0.554 | 0.0043 |
50 | 13.42 | 517 | 0.3860 | 0.0042 |
70 | 15.25 | 711 | 0.2720 | 0.0036 |
95 | 17.4 | 935 | 0.2060 | 0.0036 |
120 | 19.47 | 1177 | 0.1610 | 0.0032 |
150 | 21.76 | 1468 | 0.1290 | 0.0032 |
185 | 23.76 | 1798 | 0.1060 | 0.0320 |
240 | 26.77 | 2244 | 0.0801 | 0.0031 |

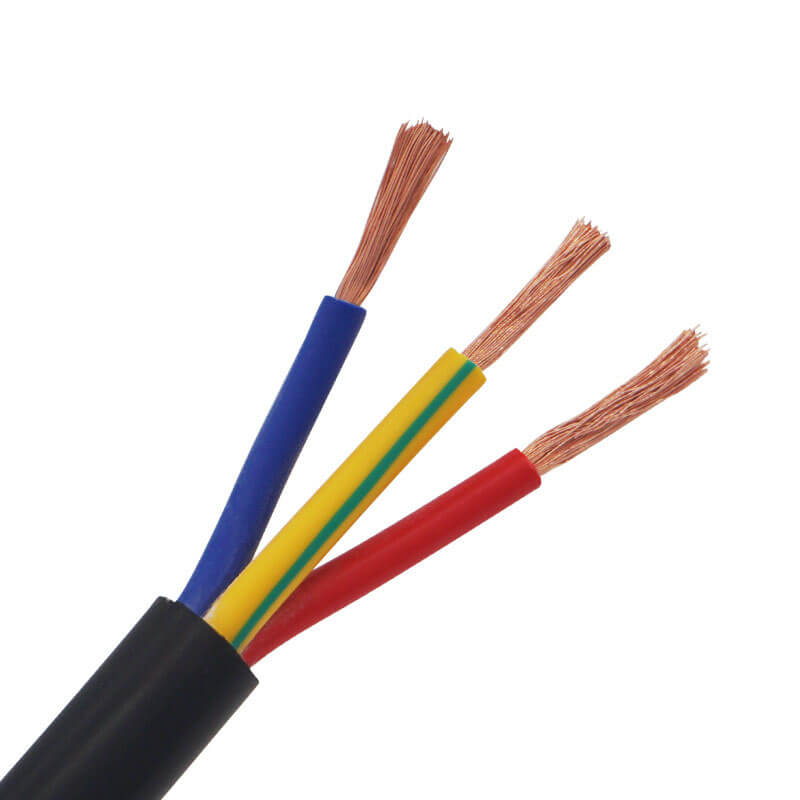

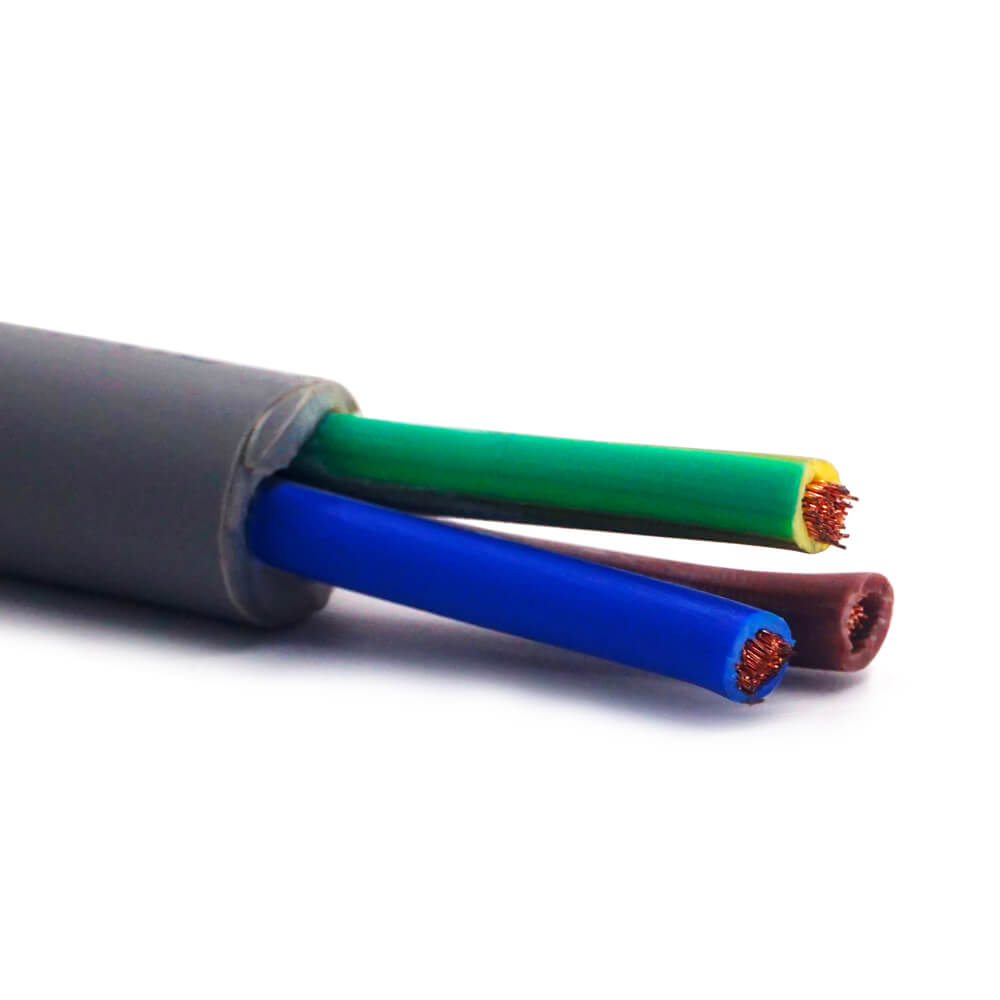

Rated Voltage:300/500V
Cross Section:0.75/1.0/1.5/2/2.5/4/6/10/16/25/35mm
Cores:2-37 Cores
Test Voltage:2000V
Flexing bending radius:7.5 x Ø
Static bending radius:4 x Ø
Get price list by E-mail:info@qingzhou-cable.com

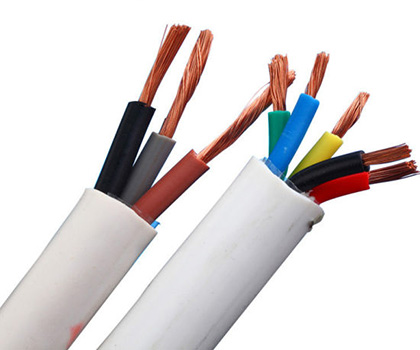

►Construction
Conductor Material: Flexible Bare Copper/Tinned Copper
Insulation Material: PVC
Sheath Material: PVC
►Characteristics
Rated Voltage: 300/500V
Cross Section: 0.75/1.0/1.5/2/2.5/4/6/10/16/25/35mm
Cores: 2-37 Cores
Test Voltage: 2000V
Flexing bending radius: 7.5 x Ø
Static bending radius: 4 x Ø
Working Temperature: -5º C to +70º C
Insulation Resistance: 20 MΩ x km
Fire Retardant: Confirm to IEC60332-1-2, EN60332-1-2 UL VW-1+CSA FT1
Application Standard: DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
►Application
Interconnection between electrical and electronic equipments, outdoor and indoor instruments

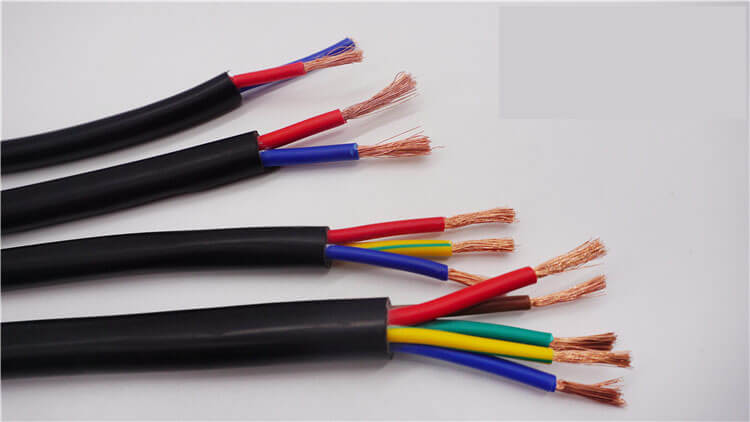

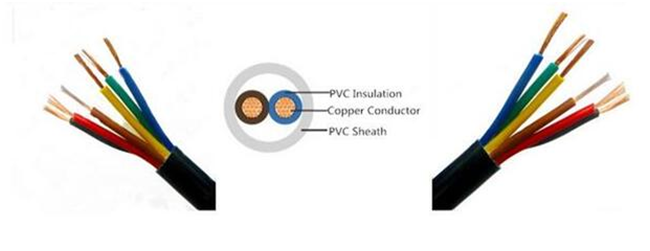

►Structure
■ Technical Data
Model Nominal Section mm2 | Conducor Class | Insulation Thickness mm | Jacket Thickness mm | Max. Ave. OD mm | Cable Weight kg/km | Conductor Max. DC resistane at 20℃ Ω/km | Min. Insu. resistance at 70℃ MΩ.km | |
Non electroplating | Electroplating | |||||||
H05VV-F 2×0,75 | 5 | 0.6 | 0.8 | 7.2 4.5×7.2 | 60.9 | 26 | 26.7 | 0,011 |
H05VV-F 2×1,0 | 5 | 0.6 | 0.8 | 7.5 4.7×7.5 | 69.1 | 19.5 | 20 | 0,010 |
H05VV-F 2×1,5 | 5 | 0.7 | 0.8 | 8.6 5.2×8.6 | 93.9 | 13.3 | 13.7 | 0.010 |
H05VV-F 2×2,5 | 5 | 0.8 | 1.0 | 10.6 | 143.2 | 7.98 | 8.21 | 0.0095 |
H05VV-F 2×4,0 | 5 | 0.8 | 1.1 | 12.1 | 195.8 | 4.95 | 5.09 | 0.0078 |
H05VV-F 3×0,75 | 5 | 0.6 | 0.8 | 7.6 | 71.9 | 26 | 26.7 | 0,011 |
H05VV-F 3×1,0 | 5 | 0.6 | 0.8 | 8.0 | 82.9 | 19.5 | 20 | 0,010 |
H05VV-F 3×1,5 | 5 | 0.7 | 0.9 | 9.4 | 117.3 | 13.3 | 13.7 | 0.010 |
H05VV-F 3×2,5 | 5 | 0.8 | 1.1 | 11.4 | 178.7 | 7.98 | 8.21 | 0.0095 |
H05VV-F 3×4,0 | 5 | 0.8 | 1.2 | 13.1 | 247.0 | 4.95 | 5.09 | 0.0078 |
H05VV-F 4×0,75 | 5 | 0.6 | 0.8 | 8.3 | 88.3 | 26 | 26.7 | 0,011 |
H05VV-F 4×1,0 | 5 | 0.6 | 0.9 | 9.0 | 105.4 | 19.5 | 20 | 0,010 |
H05VV-F 4×1,5 | 5 | 0.7 | 1.0 | 10.5 | 148.8 | 13.3 | 13.7 | 0.010 |
H05VV-F 4×2,5 | 5 | 0.8 | 1.1 | 12.5 | 220.1 | 7.98 | 8.21 | 0.0095 |
H05VV-F 4×4,0 | 5 | 0.8 | 1.2 | 14.3 | 306.9 | 4.95 | 5.09 | 0.0078 |
Get price list by E-mail:info@qingzhou-cable.com
