abc cable manufacturers in China

Date:2020-07-03

abc cable manufacturers in China

Why you choose us as your gold supplier?

♦ Your inquiry will be replied to within the hour.
♦ Your label design according to your requirements ready in 2days.
♦ 26 years OEM/ODM experience.
♦ Goods are sold with rerun or refund guarantee due to quality issue!
♦ Prompt shipment by reputed shipping line and professional documents.
♦ Cargoes photo before and after loading into container after shipment with e-mail.

Qingzhou Cable: Professional ABC cable manufacturers from China. Meet your kinds of requirement of ABC wire and cable. With over 26 years aerial cable production experience and 10 years aluminum ABC cable export experience, aerial cable factory price without any third party. Email: info@qingzhou-cable.com

Our Advantage: Qingzhou cable is a one of the best professional ABC cable suppliers in China, mainly production and ABC wire sales. It located in Henan, it has rich aluminum resources in the world, high quality and competitive price. Email: info@qingzhou-cable.com

Custom Service: Qingzhou Cable can customize all ABC aerial cable size, you just need leave us your requirements. And we will reply you within 12 hours. Email: info@qingzhou-cable.com

Please kindly send us your inquiry aerial bunched cable list and order quantity, our sales manager will reply you as soon as possible. Email:info@qingzhou-cable.com

0.6/1 KV ABC –Aerial Bundled Cables – NFC 33-209 (AL/XLPE)

ABC Cable NFC 33-209 Standard
Number of Cores x Nominal Cross Section	Overal Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.x mm^2	mm	Kg/Km	Ω/Km	KN	A
2x10 RM	12.8	93	3.08	1.5	38
4x10 RM	15.4	183	3.08	1.5	38
2x16 RM	14.8	129	1.91	2.3	72
2x16 RN + 2x1.5 RE	14.8	176	1.910/12.100	2.3	72
4x16 RM	17.8	257	1.91	2.3	72
4x16 RN + 2x1.5 RE	17.8	304	1.910/12.100	2.3	72
2x25 RM	18	202	1.2	3.8	107
2x25 RM + 2x1.5 RE	18	249	1.200/12.100	3.8	107
4x25 RM	21.7	404	1.2	3.8	107
4x25 RM + 2x1.5 RE	21.7	451	1.200/12.100	3.8	107
2x35 RM	20.8	269	0.868	5.2	132
2x35 RM + 2x1.5 RE	20.8	316	0.868/12.100	5.2	132
4x35 RM	25.1	539	0.868	5.2	132
4x35 RM + 2x1.5 RE	25.1	586	0.868/12.100	5.2	132
2x50 RM	23.4	352	0.641	7.6	165
2x50 RM + 2x1.5 RE	23.4	399	0.641/12.100	7.6	165
1x54.6 RM + 3x25 RM	21.7	507	0.630/1.200	3.8	107
1x54.6 RM + 3x25 RM + 1x16 RM	24.3	573	0.630/1.200/1.910	3.8/2.3	107/72
1x54.6 RM + 3x25 RM + 2x16 RM	29.7	639	0.630/1.200/1.910	3.8/2.3	107/72
1x54.6 RM + 3x25 RM + 3x16 RM	31.1	705	0.630/1.200/1.910	3.8/2.3	107/72
1x54.6 RM + 3x35 RM	25.1	615	0.630/0.868	5.2	132
1x54.6 RM + 3x35 RM + 1x16 RM	28.1	680	0.630/0.868/1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 2x16 RM	34.3	748	0.630/0.868/1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 3x16 RM	35.9	814	0.630/0.868/1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 1x25 RM	28.1	714	0.630/0.868/1.200	5.2/3.8	132/107
1x54.6 RM + 3x50 RM	28.2	741	0.630/0.641	7.6	165
1x54.6 RM + 3x50 RM + 1x16 RM	31.6	806	0.630/0.641/1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 2x16 RM	38.6	875	0.630/0.641/1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 3x16 RM	40.4	940	0.630/0.641/1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 1x25 RM	31.6	841	0.630/0.641/1.200	7.6/3.8	165/107
1x54.6 RM + 3x70 RM	33	950	0.630/0.443	10.2	205
1x54.6 RM + 3x70 RM + 1x16 RM	37	1014	0.630/0.443/1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 2x16 RM	45.2	1083	0.630/0.443/1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 3x16 RM	47.3	1148	0.630/0.443/1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 1x25 RM	37	1048	0.630/0.443/1.200	10.2/3.8	205/107
1x54.6 RM + 3x70 RM + 2x25 RM	45.2	1150	0.630/0.443/1.200	10.2/3.8	205/107
1x54.6 RM + 3x70 RM + 3x25 RM	47.3	1250	0.630/0.443/1.200	10.2/3.8	205/107
1x54.6 RM + 3x95 RM	37.4	1176	0.630/0.320	13.5	240
1x54.6 RM + 3x95 RM + 1x16 RM	41.9	1243	0.630/0.320/1.910	13.5/2.3	240/72

0.6/1 KV ABC –Aerial Bundled Cable- BS 7870-5 (AL/XLPE)

ABC Cable -BS 7870-5 Standard
number of cores x nominal cross section	max. conductor- resistance	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	Ohm/km	kN	A	mm	kg/km
1x 16 RM	1,910	2,5	72	80	74
1x 25 RM	1,200	4,0	107	90	106
1x 35 RM	0,868	5,5	132	105	138
1x 50 RM	0,641	8,0	165	118	182
1x 70 RM	0,443	10,7	205	130	252
1x 95 RM	0,320	13,7	240	154	333
1x 120 RM	0,253	18,6	290	170	408
1x 150 RM	0,206	23,2	334	190	502
1x 185 RM	0,164	28,7	389	210	611
1x 240 RM	0,125	37,2	467	240	801
2x 16 RM	1,910	2,5	72	156	147
2x 25 RM	1,200	4,0	107	180	208
2x 35 RM	0,868	5,5	132	200	277
2x 50 RM	0,641	8,0	165	235	361
2x 70 RM	0,443	10,7	205	254	505
2x 95 RM	0,320	13,7	240	303	666
2x 150 RM	0,206	23,2	334	380	1004
4x 16 RM	1,910	2,5	72	188	286
4x 25 RM	1,200	4,0	107	212	430
4x 35 RM	0,868	5,5	132	241	553
4x 50 RM	0,641	8,0	165	278	746
4x 70 RM	0,443	10,7	205	318	1009
4x 95 RM	0,320	13,7	240	378	1332
4x 120 RM	0,253	18,6	290	544	1632
4x 50 + 1x 25 RM	0,641/1,200	8,0/4,0	165/107	319	814
4x 50 + 1x 35 RM	0,641/0,868	8,5/5,5	165/132	319	845
4x 70 + 1x 25 RM	0,443/1,200	10,7/4,0	205/107	360	1105
4x 70 + 2x 25 RM	0,443/1,200	10,7/4,0	205/107	400	1217
4x 95 + 1x 25 RM	0,320/1,200	13,7/4,0	240/107	418	1438
4x 95 + 2x 25 RM	0,320/1,200	13,7/4,0	240/107	420	1544
4x120 + 1x 25 RM	0,253/1,200	18,6/4,0	290/107	590	2050

Please check the specification. Our competitive price will send you within 12 hours. We can customize other cross-sections on your request.

ABC Cable-DES/LVC IEC 60502 (AL/XLPE)
umber of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	kN	A	mm	kg/km
4x25 RM	3.5	84	21.5	420
4x35 RM	4.9	104	23.9	550
4x120+1x25 RM	16.8	246	43.8	1800
4x185+1x25 RM	25.9	332	50.7	2700

Please check the specification, Our competitive price will send you within 12 hours. We can customize other cross-sections on your request.

ABC(Aerial Bundle) Cable IEC 60502 & TNB (AL/PE)
Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	kN	A	mm	kg/km
1x16+1x 25 RM	6.4	61	15.3	160
3x16+1x 25 RM	6.4	61	19	290
3x25+1x 25 RM	6.4	84	23.2	400
3x35+1x 25 RM	6.4	104	25.6	500
3x50+1x 35 RM	8.9	129	30	680
3x70+1x 50 RM	12.1	167	34.9	920
3x95+1x 70 RM	18	209	40.6	1270
3x120+1x 70 RM	18	246	44.1	1510
3x150+1x 95 RM	24.2	283	49.2	1870
3x185+1x120 RM	30.8	332	54.9	2340
3x25+1x25+1x16 RM	6.4	84	23.2	470
3x35+1x25+1x16 RM	6.4	104	25.6	560
3x50+1x35+1x16 RM	8.9	129	30	740
3x70+1x50+1x16 RM	12.1	167	34.9	980
3x95+1x70+1x16 RM	18	209	40.6	1330
3x120+1x70+1x16 RM	18	246	44.1	1580
3x150+1x95+1x16 RM	24.2	283	49.2	1940
3x185+1x120+1x16 RM	30.8	332	54.9	2410

Please check the specification, Our competitive price will send you within 12 hours. We can customize other cross-sections on your request.

ABC Cable-HD 626 S1 Standard-(AL/XLPE)
Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	kN	A	mm	kg/km
2x 16 RM	1,910	2,5	72	147
2x 25 RM	1,200	4,0	107	208
2x 35 RM	0,868	5,5	132	277
2x 50 RM	0,641	8,0	165	361
4x 16 RM	1,910	2,5	72	286
4x 25 RM	1,200	4,0	107	430
4x 35 RM	0,868	5,5	132	553
4x 50 RM	0,641	8,0	165	746
4x 70 RM	0,443	10,7	205	1009
4x 95 RM	0,320	13,7	240	1332
4x 120 RM	0,253	18,6	290	1632
4x 35 + 1x 35 RM	0,868/0,868	5,5/5,5	132/132	694
4x 50 + 1x 25 RM	0,641/1,200	8,0/4,0	165/107	814
4x 50 + 1x 35 RM	0,641/0,868	8,5/5,5	165/132	845
4x 70 + 1x 25 RM	0,443/1,200	10,7/4,0	205/107	1105
4x 70 + 2x 25 RM	0,443/1,200	10,7/4,0	205/107	1217
4x 70 + 1x 35 RM	0,443/0,868	10,7/5,5	205/132	1150
4x 70 + 2x 35 RM	0,443/0,868	10,7/5,5	205/132	1289
4x 95 + 1x 25 RM	0,320/1,200	13,7/4,0	240/107	1438
4x 95 + 1x 35 RM	0,320/0,868	13,7/5,5	240/132	1467
4x 95 + 2x 25 RM	0,320/1,200	13,7/4,0	240/107	1544

Please check the specification, Our competitive price will send you within 12 hours. We can customize other cross-sections on your request.

ABC Cable-AS/NZS 3560.1 Stansard
Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	kN	A	mm	kg/km
2x16 RM	4.4	78	15	140
2x25 RM	7	105	17.6	210
2x35 RM	9.8	125	19.6	270
2x50 RM	11.4	150	22.8	370
2x95 RM	15.3	230	30.6	680
3x25 RM	8.8	97	19	310
3x35 RM	9.8	120	21.1	410
3x50 RM	11.4	140	24.6	550
4x16 RM	8.8	74	18.1	290
4x25 RM	14	97	21.2	410
4x35 RM	19.6	120	23.7	550
4x50 RM	28	140	27.5	740
4x70 RM	39.2	175	31.9	1000
4x95 RM	53.2	215	36.9	1370
4x120 RM	67.2	250	40.6	1690
4x150 RM	84	280	43.9	2020

Please check the specification. Our ABC aerial cable competitive price will send you within 12 hours. We can customize other cross-sections of aerial bundled cable on your request.

Related Products

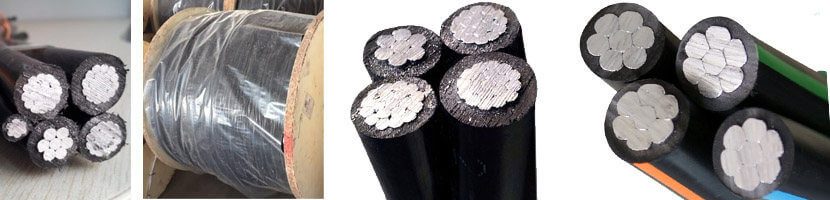

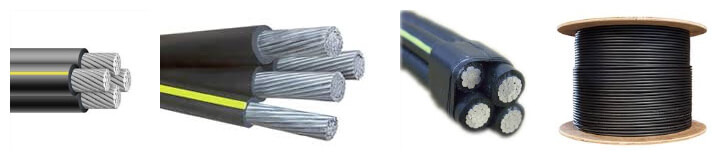

Aluminum Wire Direct Burial Cable For Sale

Aerial URD Electrical Cable Factory Price

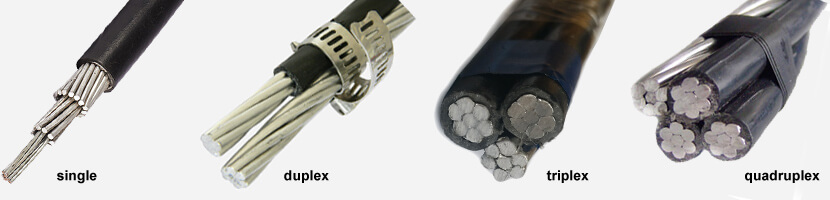

Overhead Service Drop Wire Price in Philippines
