TECHNICAL SPECIFICATION

No.

Description

Unit

Data

1

Model

-

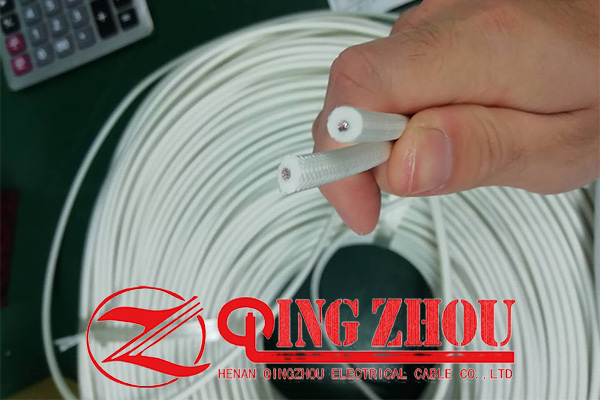

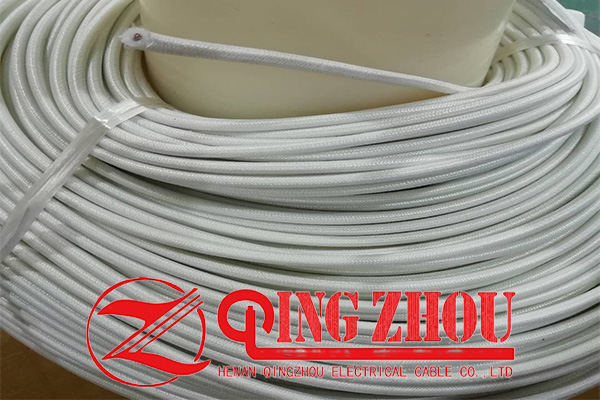

1x1.5mm2 Cu/Silicone rubber/FiberglassBraid

2

Manufacturer

-

HENAN QINGZHOU CABLE CO.,LTD

3

Country

-

CHINA

4

Rated Voltage

kV

0.11/8

5

Conductors

Material

-

Tinned copper

Number of cores

-

1

Nominal size

mm2

1x1.5mm2

Number of wires

No./mm

48/0.2mm

Conductor diameter

mm

1.6±0.01

6

Insulation

Material

-

Silicone rubber

Insulation thickness

mm

1.95

Approx. diameter

mm

5.5±01

Insulation color

White

7

Braid

Approx diameter

mm

5.8

Material

-

Fiberglass Braid

color

White

8

Cable

Approx. overall diameter

mm

5.8

Approx. weight of complete c

a kg/km

70

9

Nominal voltage

8000V

10

Max. conductor temperature

°C

-65～+200℃
