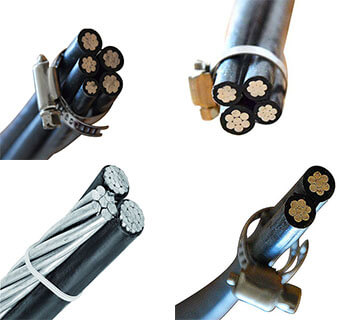

The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Phase and neutral cores are laid up in a bundle with a left hand lay. Can be used for fixed installation as overhead power lines up to 1000 V incl.
| Conductor (for either phase, neutral or street lighting) | The conductors shall be of aluminium 1350 wires and are compacted circular stranded(RM). |
|---|---|
| Insulation | XLPE. 1, 2 and 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm^2 and a minimum of 16 ribs for cores above 50 mm^2. In the case of five core bundles the surface of the protective core should be smooth. |
| Assembly | 2 up to 4 cores of equal cross section are stranded together in left-hand lay, additionally 1 or 2 cores of reduced cross section can be co-stranded. |
| Rated voltage | 0.6/1KV |
| Cores | 1,2,3, 4, 3+1,4+1 etc. |
| Section | 10mm2~120mm2 |
| Phase Conductor | Aluminium (AAC) |
| Neutral Conductor | AAAC/ACSR |
| Insulation | XLPE/ PE/ PVC/ LEPE/ HDPE |
| Standards: | NFC 33-209/ BS 7870-5/ IEC 60502/AS/NZS or according to your requirement. |
| Application | Overhead power transmission. |

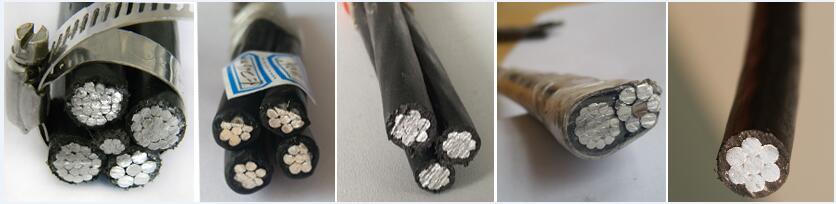

| ABC Cable -BS 7870-5 Standard | |||||
|---|---|---|---|---|---|
| number of cores x nominal cross section | max. conductor- resistance | min. breaking load of conductor strand | Current rating in the air | Outer diameter | Total weight |
| mm^2 | Ohm/km | kN | A | mm | kg/km |
| 1x 16 RM | 1,910 | 2,5 | 72 | 80 | 74 |
| 1x 25 RM | 1,200 | 4,0 | 107 | 90 | 106 |
| 1x 35 RM | 0,868 | 5,5 | 132 | 105 | 138 |
| 1x 50 RM | 0,641 | 8,0 | 165 | 118 | 182 |
| 1x 70 RM | 0,443 | 10,7 | 205 | 130 | 252 |
| 1x 95 RM | 0,320 | 13,7 | 240 | 154 | 333 |
| 1x 120 RM | 0,253 | 18,6 | 290 | 170 | 408 |
| 1x 150 RM | 0,206 | 23,2 | 334 | 190 | 502 |
| 1x 185 RM | 0,164 | 28,7 | 389 | 210 | 611 |
| 1x 240 RM | 0,125 | 37,2 | 467 | 240 | 801 |
| 2x 16 RM | 1,910 | 2,5 | 72 | 156 | 147 |
| 2x 25 RM | 1,200 | 4,0 | 107 | 180 | 208 |
| 2x 35 RM | 0,868 | 5,5 | 132 | 200 | 277 |
| 2x 50 RM | 0,641 | 8,0 | 165 | 235 | 361 |
| 2x 70 RM | 0,443 | 10,7 | 205 | 254 | 505 |
| 2x 95 RM | 0,320 | 13,7 | 240 | 303 | 666 |
| 2x 150 RM | 0,206 | 23,2 | 334 | 380 | 1004 |
| 4x 16 RM | 1,910 | 2,5 | 72 | 188 | 286 |
| 4x 25 RM | 1,200 | 4,0 | 107 | 212 | 430 |
| 4x 35 RM | 0,868 | 5,5 | 132 | 241 | 553 |
| 4x 50 RM | 0,641 | 8,0 | 165 | 278 | 746 |
| 4x 70 RM | 0,443 | 10,7 | 205 | 318 | 1009 |
| 4x 95 RM | 0,320 | 13,7 | 240 | 378 | 1332 |
| 4x 120 RM | 0,253 | 18,6 | 290 | 544 | 1632 |
| 4x 50 + 1x 25 RM | 0,641/1,200 | 8,0/4,0 | 165/107 | 319 | 814 |
| 4x 50 + 1x 35 RM | 0,641/0,868 | 8,5/5,5 | 165/132 | 319 | 845 |
| 4x 70 + 1x 25 RM | 0,443/1,200 | 10,7/4,0 | 205/107 | 360 | 1105 |
| 4x 70 + 2x 25 RM | 0,443/1,200 | 10,7/4,0 | 205/107 | 400 | 1217 |
| 4x 95 + 1x 25 RM | 0,320/1,200 | 13,7/4,0 | 240/107 | 418 | 1438 |
| 4x 95 + 2x 25 RM | 0,320/1,200 | 13,7/4,0 | 240/107 | 420 | 1544 |
| 4x120 + 1x 25 RM | 0,253/1,200 | 18,6/4,0 | 290/107 | 590 | 2050 |
| Item # | Phase Conductor Size/AWG | Phase Conductor Stranding | Phase | Bare | Bare | Bare | Weight | Weight | Ampacity | Ampacity |
|---|---|---|---|---|---|---|---|---|---|---|
| Conductor | Neutral | Neutral | Neutral | Per | Per | XLP | Poly | |||
| Insulation | Messenger | Messenger | Messenger | MFT | MFT | |||||
| Thickness | Size/AWG | Stranding | Breaking | XLP | Poly | |||||
| Strength | ||||||||||
| Whelk | 4 | Solid | 45 mls | 4 | 6/1 | 1860 Lbs | 169 Lbs | 165 Lbs | 115 Amps | 90 Amps |
| Periwinkle | 4 | 7/w | 45 mls | 4 | 6/1 | 1860 Lbs | 176 Lbs | 172 Lbs | 115 Amps | 90 Amps |
| Cockle | 2 | 7/w | 45 mls | 4 | 6/1 | 1860 Lbs | 233 Lbs | 227 Lbs | 150 Amps | 120 Amps |
| Conch | 2 | 7/w | 45 mls | 2 | 6/1 | 2850 Lbs | 267 Lbs | 261 Lbs | 150 Amps | 120 Amps |
| Janthina | 1/0 | 7/w | 60 mls | 2 | 6/1 | 2850 Lbs | 376 Lbs | 365 Lbs | 205 Amps | 160 Amps |
| Ranella | 1/0 | 19/w | 60 mls | 2 | 6/1 | 2850 Lbs | 372 Lbs | 362 Lbs | 205 Amps | 160 Amps |
| Neritina | 1/0 | 7/w | 60 mls | 1/0 | 6/1 | 4380 Lbs | 530 Lbs | 419 Lbs | 205 Amps | 160 Amps |
| Cenia | 1/0 | 19/w | 60 mls | 1/0 | 6/1 | 4380 Lbs | 426 Lbs | 416 Lbs | 205 Amps | 160 Amps |
| Cavolinia | 2/0 | 7/w | 60 mls | 1 | 6/1 | 3550 Lbs | 462 Lbs | 451 Lbs | 235 Amps | 185 Amps |
| Clio | 2/0 | 19/w | 60 mls | 1 | 6/1 | 3550 Lbs | 458 Lbs | 446 Lbs | 235 Amps | 185 Amps |
| Runcina | 2/0 | 7/w | 60 mls | 2/0 | 6/1 | 5310 Lbs | 530 Lbs | 519 Lbs | 235 Amps | 185 Amps |
| Triton | 2/0 | 19/w | 60 mls | 2/0 | 6/1 | 5310 Lbs | 526 Lbs | 514 Lbs | 235 Amps | 185 Amps |
| Sanddollar | 3/0 | 7/w | 60 mls | 1/0 | 6/1 | 4380 Lbs | 570 Lbs | 557 Lbs | 275 Amps | 215 Amps |
| Aega | 3/0 | 19/w | 60 mls | 1/0 | 6/1 | 4380 Lbs | 565 Lbs | 552 Lbs | 275 Amps | 215 Amps |
| Cherrystone | 3/0 | 7/w | 60 mls | 3/0 | 6/1 | 6620 Lbs | 656 Lbs | 643 Lbs | 250 Amps | 200 Amps |
| Mursia | 3/0 | 19/w | 60 mls | 3/0 | 6/1 | 6620 Lbs | 650 Lbs | 638 Lbs | 250 Amps | 200 Amps |
| Cuttlefish | 4/0 | 7/w | 60 mls | 2/0 | 6/1 | 5310 Lbs | 706 Lbs | 691 Lbs | 315 Amps | 245 Amps |
| Cerapus | 4/0 | 19/w | 60 mls | 2/0 | 6/1 | 5310 Lbs | 699 Lbs | 684 Lbs | 315 Amps | 245 Amps |
| Razor | 4/0 | 7/w | 60 mls | 4/0 | 6/1 | 8350 Lbs | 814 Lbs | 799 Lbs | 315 Amps | 245 Amps |
| Zuzara | 4/0 | 19/w | 60 mls | 4/0 | 6/1 | 8350 Lbs | 805 Lbs | 792 Lbs | 315 Amps | 245 Amps |
| Cowry | 336.4 | 19/w | 80 mls | 4/0 | 6/1 | 8350 Lbs | 1135 Lbs | 1093 Lbs | 420 Amps | 325 Amps |
| Limpet | 336.4 | 19/w | 80 mls | 336.4 | 18/1 | 8680 Lbs | 1209 Lbs | 1167 Lbs | 420 Amps | 325 Amps |
